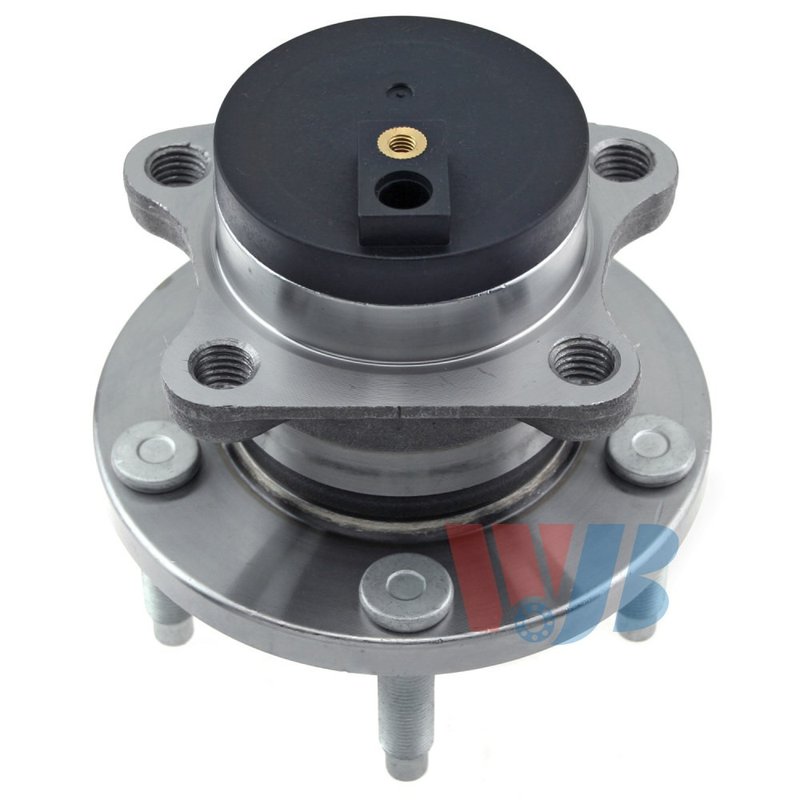

InMotion WA512334 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Edge and MKX

InMotion WA512334 is a rear wheel bearing and hub assembly built for 2007-2008 Ford Edge and 2007-2008 Lincoln MKX applications. It is engineered from OE data for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

Key Features

• Rear wheel bearing and hub assembly for standard grade applications
• Fits 2007-2008 Ford Edge, rear
• Fits 2007-2008 Lincoln MKX, rear
• Includes anti-lock brake sensor
• 5 wheel studs with 4 flange bolt holes
• Modified flange shape with 139.7 flange diameter and 62.9 flange offset
• Wheel pilot diameter: 70.5; brake pilot diameter: 72.0; hub pilot diameter: 77.9
• Bolt circle diameter: 114.5 / 4.5

Product Details

WA512334 is manufactured with high-precision processes and strict quality-control standards to deliver consistent fitment and service life. The assembly is designed as a direct replacement for the original rear hub on Ford Edge and Lincoln MKX models, using OE measurements to support proper wheel mounting, brake alignment, and ABS system function. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting or vibration from hub wear
• Corrosion or damage at the rear hub mounting surface

Installation Notes

Verify rear fitment by year, make, model, and standard grade application before installation. Inspect the knuckle, axle interface, and mounting surfaces for wear or corrosion, and confirm the ABS connector and sensor routing match the original setup. Torque all fasteners to the vehicle manufacturer’s specifications and check wheel bearing operation after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based dimensions and controlled production standards to support proper fit, performance, and durability. Part number WA512334 is built for direct replacement use on the listed Ford Edge and Lincoln MKX rear applications.
