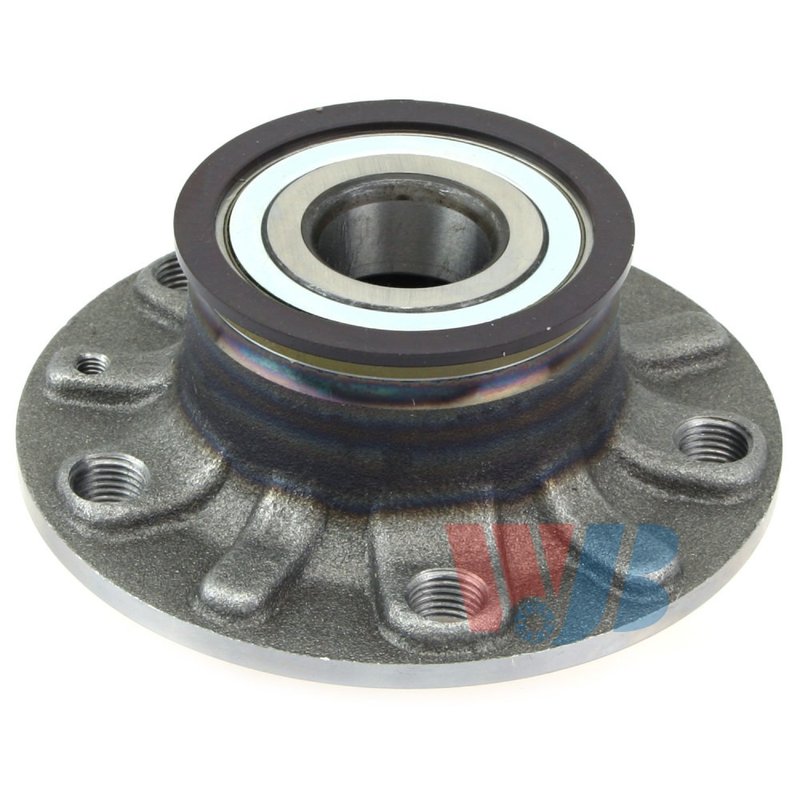

InMotion WA512336 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Volkswagen and Audi

InMotion WA512336 is a rear wheel bearing and hub assembly built for select Volkswagen and Audi applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

For drivers searching for a rear wheel bearing hub assembly for Volkswagen Golf, GTI, Jetta, e-Golf, Golf SportWagen, Beetle, or Audi A3 applications, this part number WA512336 is built to match the specified rear position and factory dimensions.

Key Features

• Rear wheel bearing and hub assembly for the rear axle
• Includes anti-lock brake sensor
• 5-wheel-stud design
• Wheel pilot diameter: 57.0 mm
• Brake pilot diameter: 65.0 mm
• Flange diameter: 136.5 mm
• Bolt circle diameter: 112.0 mm
• Designed using OE data and measurements for application-specific fitment
• Direct replacement format for the original hub assembly

Detailed Description

InMotion WA512336 is a rear wheel bearing and hub assembly manufactured with precision processes and strict quality-control standards. The assembly is built to the OE dimensions required for the listed Volkswagen and Audi rear applications, helping maintain proper wheel mounting, brake interface alignment, and ABS sensor function. This part number WA512336 is a practical replacement choice when servicing rear hub wear on vehicles such as the Volkswagen Golf, GTI, Jetta, and Audi A3.

Compatible With 2016-2021 Volkswagen Golf, rear; 2010-2014 Volkswagen Golf, rear; 2006 Volkswagen Golf, rear; 2006-2021 Volkswagen GTI, rear; 2019-2021 Volkswagen Jetta, rear; 2012-2014 Volkswagen Jetta, rear; 2015-2020 Audi A3, rear; 2006-2013 Audi A3, rear; 2015-2019 Volkswagen e-Golf, rear; 2015-2019 Volkswagen Golf SportWagen, rear; 2016-2018 Audi A3 Sportback e-tron, rear; 2017 Volkswagen Golf R, rear; 2012-2014 Volkswagen Beetle, rear.

Common Repair Uses

• Rear wheel bearing noise or growling from the hub area
• ABS warning light caused by a failed integrated sensor
• Wheel play or looseness at the rear hub
• Uneven brake rotor contact from hub wear or runout
• Restoring proper rear wheel mounting on Volkswagen and Audi models

Installation Notes and Tips

Confirm rear-position fitment by year, make, and model before installation. Inspect the knuckle, axle hardware, brake components, and sensor connector condition during service, and verify the wheel pilot and bolt circle dimensions match the vehicle specification. Because this assembly includes an ABS sensor, clear diagnostic codes and verify system operation after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support consistent fitment and service life. The part is built as a direct replacement for the original rear hub assembly on the listed Volkswagen and Audi applications.
