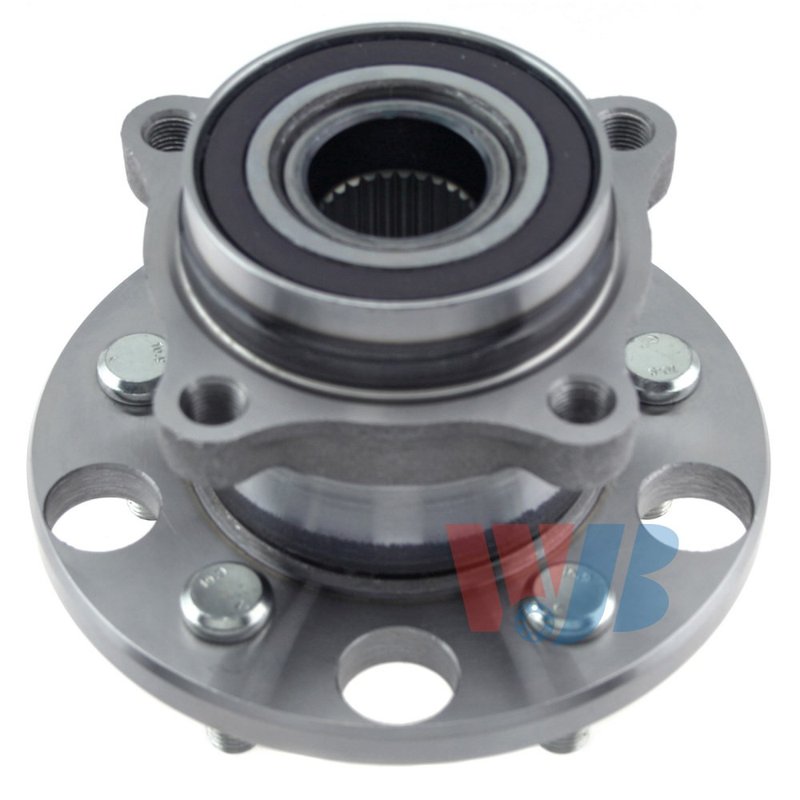

InMotion WA512337 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Lexus F Models

InMotion WA512337 is a rear wheel bearing and hub assembly built for direct replacement service on select Lexus applications. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life on Lexus RC F, GS F, IS F, GS350, GS450h, GS460, GS430, GS300, IS250, and IS350 rear positions.

Key Features

• Rear wheel bearing and hub assembly for select Lexus rear applications
• 30-spline design with 5 wheel studs
• 4 flange bolt holes with modified flange shape
• Anti-lock brake sensor included
• Wheel pilot diameter: 59.9 mm
• Brake pilot diameter: 61.9 mm
• Hub pilot diameter: 83.9 mm
• Flange diameter: 154.1 mm
• Bolt circle diameter: 113.7 mm / 4.5 in
• Flange offset: 67.4 mm

Detailed Description

InMotion WA512337 is manufactured with high-precision processes and strict quality-control standards to match the original rear hub assembly dimensions used on the listed Lexus platforms. This part number is built as a direct replacement for the OE unit, with application-specific engineering intended to preserve proper wheel mounting, sensor integration, and bearing support. It is a strong match for drivers searching for a rear wheel bearing hub assembly for 2006-2015 Lexus IS250 rear, 2006-2015 Lexus IS350 rear, 2008-2014 Lexus IS F rear, 2007-2011 Lexus GS350 rear, and related Lexus rear hub applications. WA512337 also serves 2015-2022 Lexus RC F rear and 2016-2020 Lexus GS F rear fitments.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive wheel play or looseness at the rear axle
• ABS warning light concerns related to the hub-mounted sensor
• Uneven wheel rotation caused by bearing wear
• Hub fitment issues after rear suspension or brake service

Installation Notes and Tips

Verify rear fitment by year, model, and position before installation. Confirm the 30-spline count, 5-stud wheel pattern, and sensor connection match the original assembly on the vehicle. Inspect the mating surfaces, axle components, and brake hardware for wear before pressing or bolting in the new hub assembly. Proper torque procedures and alignment checks should be followed during reassembly.

Quality Assurance

InMotion manufactures these hub assemblies using OE data, precise measurements, and controlled production standards to support correct fitment and consistent performance on the specified Lexus rear applications.
