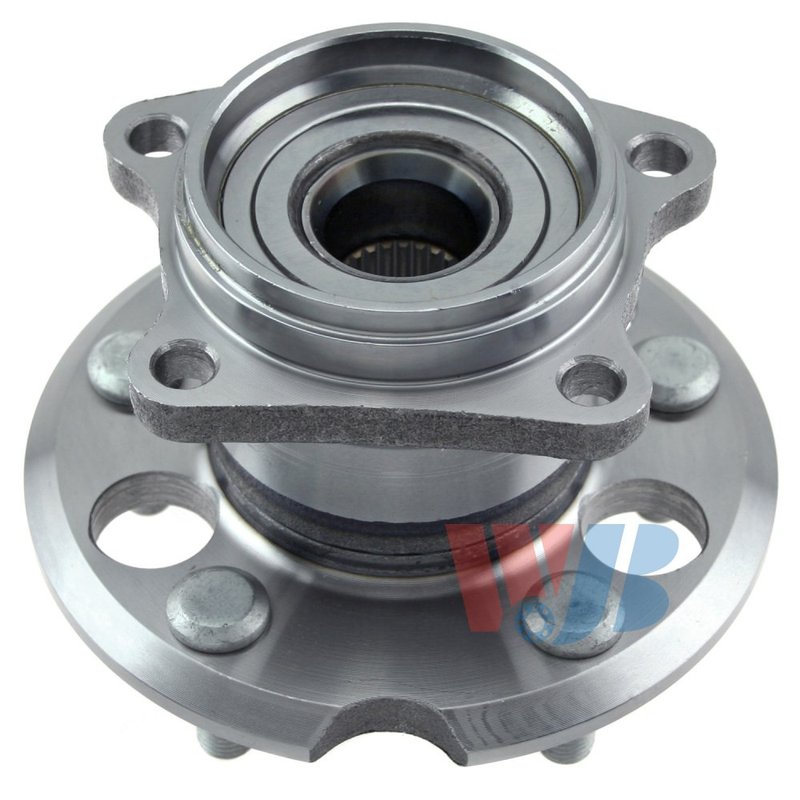

InMotion WA512338 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Toyota RAV4

InMotion WA512338 is a rear wheel bearing and hub assembly built for 2001-2005 Toyota RAV4 models. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the application.

• Fits 2001-2005 Toyota RAV4, rear
• Part number: WA512338
• 26-spline hub design
• 5 wheel studs with 4 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Hub pilot diameter: 79.4 mm
• Bolt circle diameter: 114.3 mm / 4.5 in
• Flange diameter: 151.9 mm with 69.0 mm offset

OE-Style Fitment and Construction

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards. The trapezoid flange shape, 26-spline configuration, and integrated ABS sensor are matched to the rear hub requirements of the Toyota RAV4, helping maintain proper wheel mounting, sensor function, and bearing support. WA512338 is a direct replacement option for 2001-2005 Toyota RAV4 rear applications when the original hub assembly matches these specifications.

Common Problems This Part Can Address

• Rear wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor assembly
• Wheel looseness from worn hub components
• Uneven rear wheel support from bearing wear
• Incorrect wheel mounting fit due to damaged hub dimensions

Installation Notes

Confirm rear fitment by matching the vehicle year, model, and hub specifications before installation. Compare spline count, bolt circle diameter, pilot diameters, and ABS sensor configuration to the original part. For a proper repair on a Toyota RAV4 rear hub replacement, inspect related components such as the axle interface, mounting surface, and brake hardware for wear or damage before assembly.

Quality Assurance

InMotion manufactures this hub assembly using OE data and measured application dimensions to support fitment, performance, and service life. The part is produced under strict quality-control criteria for the specified 2001-2005 Toyota RAV4 rear application. Part number WA512338 is built as an OE-style replacement hub assembly.
