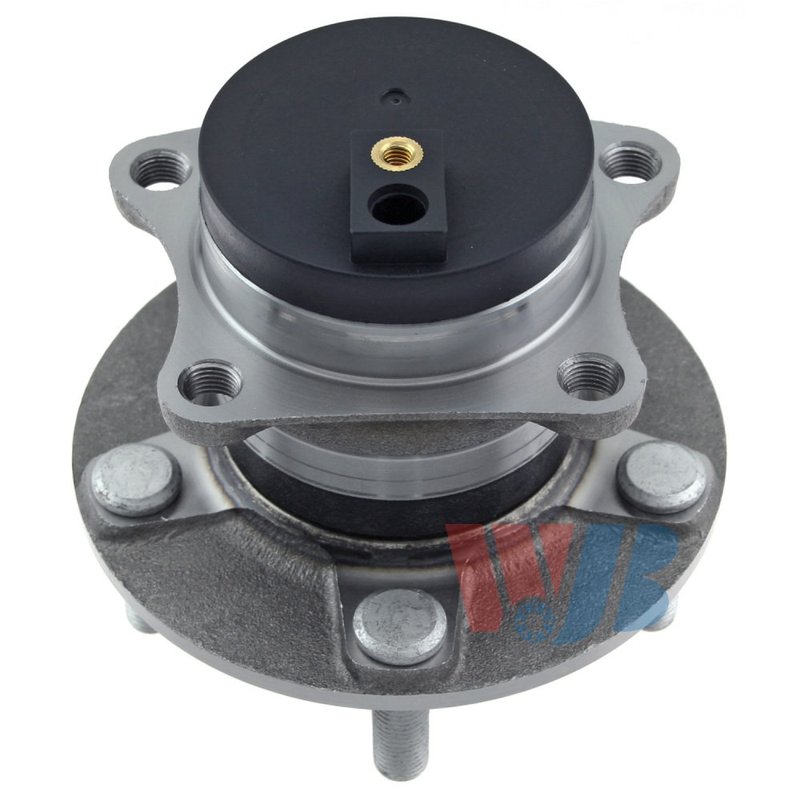

InMotion WA512349 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Mazda CX-7

InMotion WA512349 is a rear wheel bearing and hub assembly built for 2007-2012 Mazda CX-7 models in Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

Key Features

• Direct replacement rear hub assembly for the Mazda CX-7
• Fits 2007-2012 Mazda CX-7, rear, Standard Grade
• Includes anti-lock brake sensor provision with sensor included
• 5 wheel studs with 4 flange bolt holes
• OE-based dimensions for fitment, performance, and service life
• Part number WA512349 for ordering and catalog lookup

Detailed Product Information

This InMotion wheel bearing and hub assembly is manufactured with precision tolerances and strict quality-control standards. The flange uses an offset shape with a 63.0 mm flange offset, 139.8 mm flange diameter, 114.3 mm bolt circle diameter, and 4.5 in bolt circle diameter reference. Additional dimensions include a 66.9 mm wheel pilot diameter, 72.0 mm brake pilot diameter, and 78.0 mm hub pilot diameter. For buyers searching for a rear wheel hub assembly for 2007-2012 Mazda CX-7, WA512349 provides a direct-fit replacement built around the original OE measurements.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive wheel play or looseness at the rear axle
• ABS warning light concerns related to hub sensor integration
• Uneven braking feel caused by hub or bearing wear
• Fitment issues when replacing a damaged Mazda CX-7 rear hub

Installation Notes and Tips

Confirm rear position and Standard Grade application before installation. Compare the flange, stud count, bolt circle, and pilot diameters to the removed part to verify match-up. Because this assembly includes ABS sensor integration, inspect the connector and surrounding wiring during service. Professional installation is recommended for proper torque, bearing seating, and brake system alignment.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and OE-based specifications, with strict quality-control criteria applied during production. WA512349 is built as a direct replacement for the original rear hub assembly on the listed Mazda CX-7 applications.
