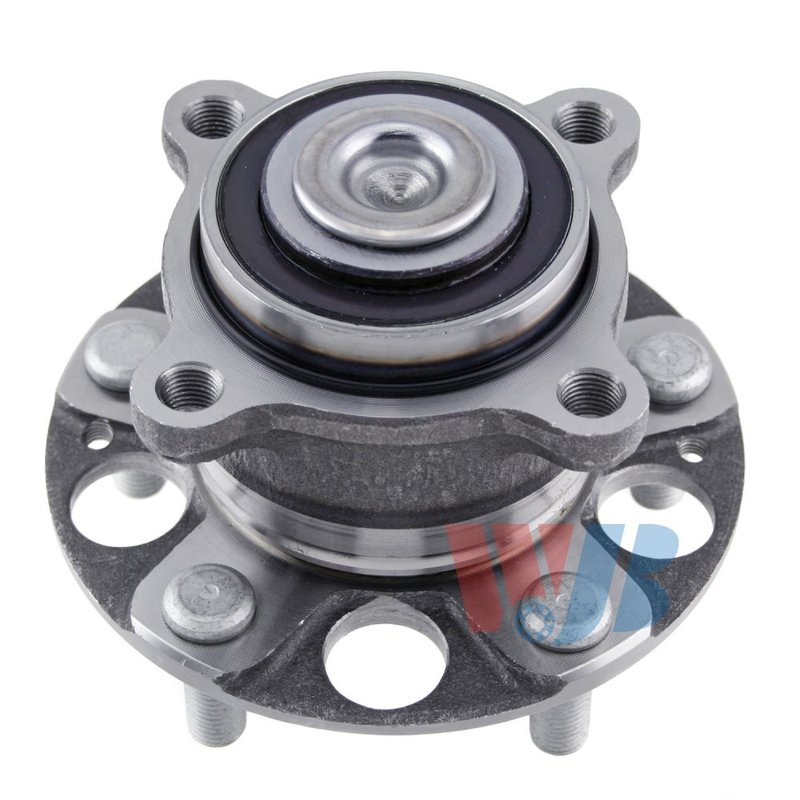

InMotion WA512353 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Accord and TSX

InMotion WA512353 is a rear wheel bearing and hub assembly built for direct replacement on select Honda and Acura applications. It is engineered from OE data and measurements for fitment, performance, and service life, with an integrated ABS sensor included for the specified vehicles.

• Rear wheel bearing and hub assembly
• Direct replacement design for OE-style fitment
• Engineered using OE data and measurements
• High-precision manufacturing with strict quality control
• Anti-lock brake sensor included
• 5 wheel studs, 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 64.1 mm
• Brake pilot diameter: 64.1 mm
• Hub pilot diameter: 72.0 mm
• Flange diameter: 139.3 mm
• Flange offset: 58.8 mm
• Modified flange shape

Fitment Details

• Fits 2009-2014 Acura TSX, rear, Standard Grade.
• Fits 2008-2012 Honda Accord, rear, Standard Grade.

This part number, WA512353, is a direct-fit rear hub assembly for drivers searching for a Honda Accord rear wheel bearing hub assembly or an Acura TSX rear hub replacement. The WA512353 application is built to match the original part dimensions and mounting points for the listed rear positions.

What It Helps Address

• Wheel bearing noise from a worn rear hub assembly
• ABS warning light concerns related to a failed sensor-equipped hub
• Rear wheel play or looseness caused by bearing wear
• Uneven hub rotation or roughness at the wheel end
• Fitment issues when replacing an OE-style rear hub on Accord or TSX models

Installation Notes

Confirm rear-position fitment by year, make, and model before installation. Match the hub pilot, wheel pilot, bolt circle, and stud count to the original component, and verify ABS connector routing and sensor alignment during service. Professional installation is recommended for proper torque, bearing seating, and brake system inspection.

Quality Assurance

InMotion manufactures these hub assemblies with precision processes and strict quality-control criteria. Each WA512353 unit is built for the listed applications using OE-based measurements to support correct fitment and consistent operation.
