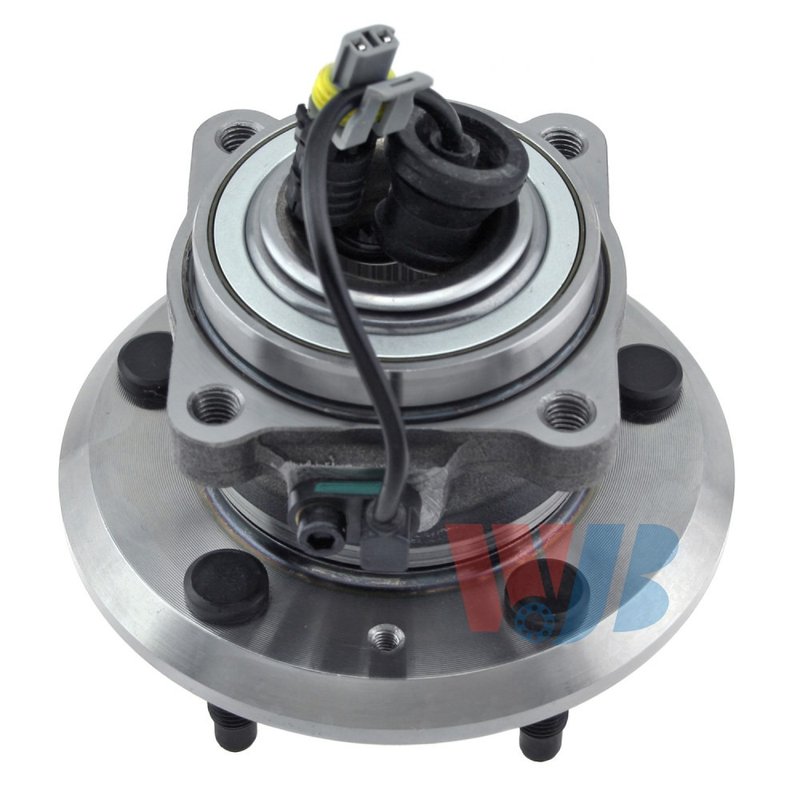

InMotion WA512358 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Select GM and Suzuki Models

InMotion WA512358 is a rear wheel bearing and hub assembly built for direct replacement on select Chevrolet, Saturn, Pontiac, and Suzuki vehicles. It is engineered from OE data and measurements to support proper fitment, stable wheel mounting, and long service life.

Compatible With rear applications on 2007-2009 Chevrolet Equinox, 2007-2009 Pontiac Torrent, 2008-2010 Saturn Vue, 2007-2009 Suzuki XL-7, and 2012-2015 Chevrolet Captiva Sport. This part cross-references Monroe Shocks & Struts (e.g., RW20-120) for the same application.

Key Features

• Part number: WA512358
• Rear wheel bearing and hub assembly
• 30-spline design
• 5 wheel studs and 4 flange bolt holes
• ABS sensor included
• Modified flange shape with 64.8 flange offset
• 151.0 flange diameter and 115.0 bolt circle diameter
• Wheel pilot diameter: 70.1; brake pilot diameter: 70.6; hub pilot diameter: 83.9

Detailed Description

InMotion WA512358 is manufactured with high-precision processes and strict quality-control standards to match the original hub assembly dimensions for the listed rear positions. The assembly uses OE-based measurements to help maintain correct wheel location, bearing support, and sensor integration on vehicles such as the Chevrolet Equinox, Pontiac Torrent, and Saturn Vue. With the ABS sensor included and the specified hub, pilot, and bolt-circle dimensions, this rear hub assembly is built for accurate replacement service.

Common Repair Applications

• Rear wheel bearing noise or roughness
• Excessive wheel play or looseness
• ABS warning light caused by a failed hub sensor assembly
• Uneven hub wear from a worn original unit
• Restoring proper rear wheel mounting on Chevrolet Equinox, Pontiac Torrent, and Saturn Vue models

Installation Notes and Tips

Verify rear fitment by year, make, model, and position before installation. Confirm the 30-spline configuration, 5-stud pattern, 4-bolt flange, and ABS sensor connection match the original part on the vehicle. Clean the mounting surface thoroughly and inspect related suspension and brake components during service. For best results, compare the original hub dimensions to WA512358 before final assembly.

Quality Assurance

InMotion manufactures this hub assembly using OE data and controlled production standards to support consistent fit and performance. WA512358 is built as a direct replacement for the listed rear applications and is backed by the brand’s manufacturing quality controls.
