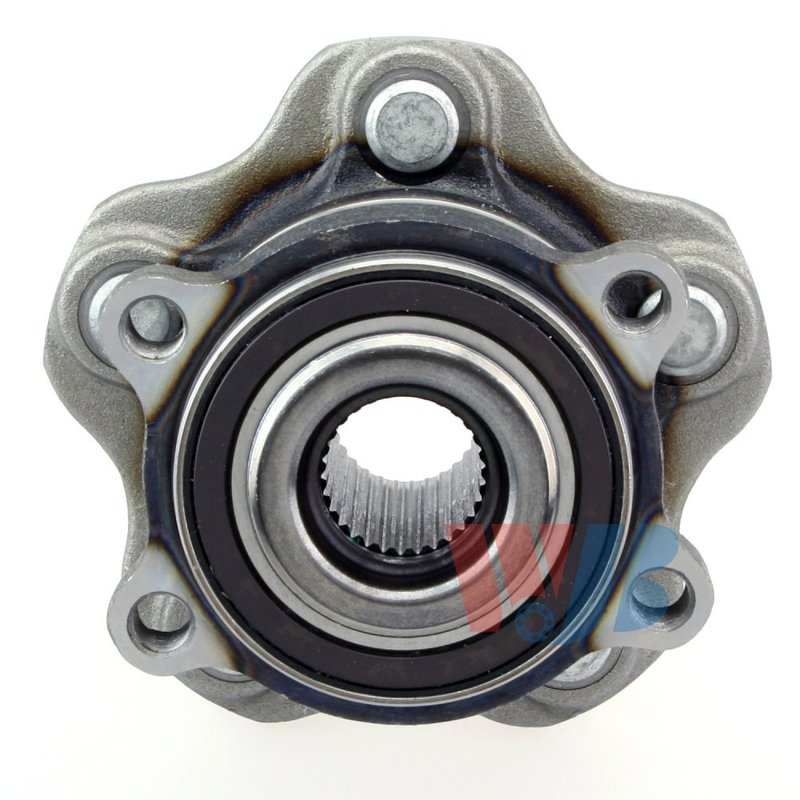

InMotion WA512363 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Nissan Murano

InMotion WA512363 is a rear wheel bearing and hub assembly built for 2003-2007 Nissan Murano models with standard grade fitment. It is engineered from OE data and measurements to match the original application, with the hub, bearing, and sensor provisions integrated for direct replacement service.

Key Features

• Fits 2003-2007 Nissan Murano, rear, standard grade
• Wheel bearing and hub assembly with 5 wheel studs
• 29-spline design with 4 flange bolt holes
• ABS sensor included for vehicles equipped with wheel speed sensing
• OE-based dimensions for fitment, performance, and service life
• Part number WA512363 for catalog and service reference

Detailed Description

This InMotion rear hub assembly is manufactured with precision processes and strict quality-control standards to support consistent fitment on the Nissan Murano. The assembly uses a 114.3 mm bolt circle diameter, 148.0 mm flange diameter, 69.0 mm flange offset, 84.0 mm hub pilot diameter, 59.5 mm wheel pilot diameter, and 66.0 mm brake pilot diameter. Those dimensions help ensure the hub seats correctly and aligns with the wheel and brake components on the specified rear application. If you are replacing a worn rear hub on a 2003-2007 Nissan Murano, WA512363 provides a direct replacement format built around OE measurements.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise such as humming or growling
• Excessive wheel play from a worn hub assembly
• ABS warning light caused by a failing wheel speed sensor circuit
• Uneven wheel rotation from hub wear or damage
• Service issues on a Nissan Murano rear hub replacement

Installation Notes and Tips

Confirm rear position and standard grade fitment before installation. Compare the spline count, bolt circle diameter, flange dimensions, and sensor configuration to the removed part before assembly. Clean the mounting surface, inspect the knuckle and brake components for wear, and torque fasteners to the vehicle manufacturer’s specifications. WA512363 is listed for the rear of 2003-2007 Nissan Murano models.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support proper fit and dependable service on the Nissan Murano. Part number WA512363 is built as a direct replacement wheel bearing and hub assembly for the listed rear applications.
