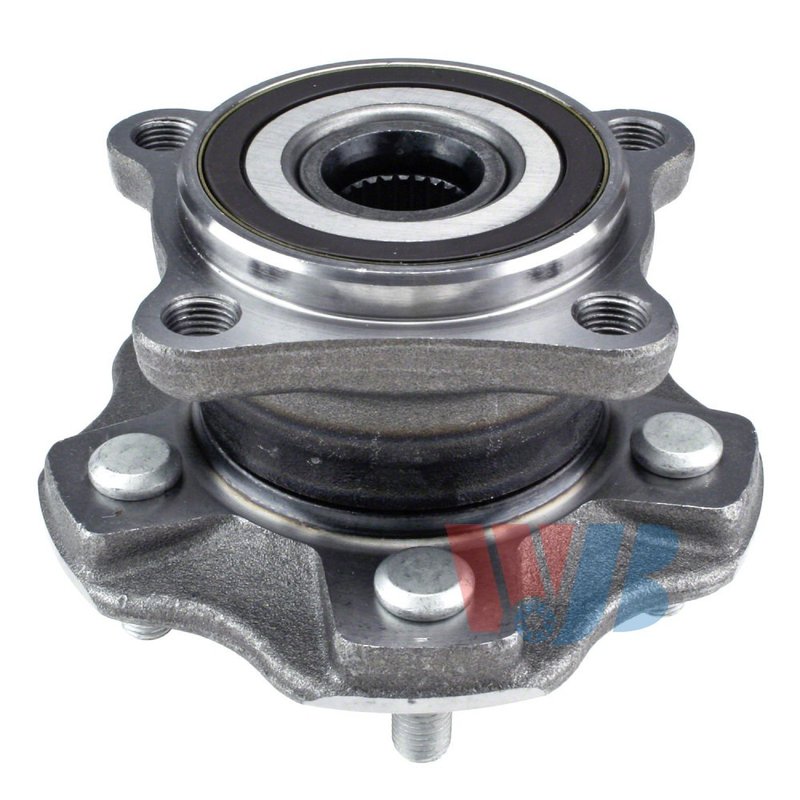

InMotion WA512365 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Toyota and Lexus

InMotion WA512365 is a rear wheel bearing and hub assembly built for specific Toyota and Lexus applications. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing and quality-control standards aimed at consistent wheel support, braking alignment, and long service life.

Compatible With rear applications on the Toyota Highlander, Toyota Sienna, Lexus RX350, Lexus RX350L, Lexus RX450h, and Lexus RX450hL. The WA512365 includes an ABS sensor and is built around the exact hub dimensions needed for the listed vehicles.

Key Features

• Rear wheel bearing and hub assembly for selected Toyota and Lexus models
• OE-data-based design for direct replacement fitment
• ABS sensor included
• 26-spline hub configuration
• 5 wheel studs with a 4-bolt flange pattern
• Flange diameter: 152.0 mm
• Bolt circle diameter: 114.3 mm / 4.5 in.
• Hub pilot diameter: 87.0 mm
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Flange offset: 65.0 mm
• Trapezoid flange shape

Detailed Description

InMotion part number WA512365 is a rear wheel bearing and hub assembly designed for standard-grade rear fitment on 2010-2023 Toyota and Lexus platforms. It is a direct replacement style unit for the rear of 2014-2016 Toyota Highlander, 2021-2023 Toyota Highlander, 2021-2023 Toyota Sienna, 2010-2022 Lexus RX350, 2018-2022 Lexus RX350L, 2010-2022 Lexus RX450h, and 2018-2022 Lexus RX450hL. The assembly is manufactured with tight dimensional control to match OE measurements for proper wheel mounting, sensor integration, and hub alignment.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are replacing a worn rear hub on a Toyota Highlander, Lexus RX350, or Toyota Sienna, WA512365 provides the specified hub and bearing configuration in one assembly.

What It Helps Fix

• Rear wheel bearing noise such as humming, growling, or rumbling
• Wheel play or looseness caused by hub wear
• ABS warning light concerns related to a failed hub sensor
• Uneven wheel rotation or vibration from a worn rear hub assembly
• Brake and wheel mounting issues caused by damaged hub surfaces

Installation Notes and Tips

Verify rear fitment by year, make, model, and standard-grade application before installation. Confirm the 26-spline configuration, 5-stud wheel pattern, 114.3 mm bolt circle, and ABS sensor connection match the original part. Clean the mounting surface thoroughly and inspect the knuckle, axle interface, and related brake components before installing the new assembly.

For Toyota Highlander and Lexus RX-series rear hub replacement, compare the original hub dimensions to the WA512365 specifications to ensure correct alignment and sensor operation. Use proper torque procedures during installation to protect the bearing and wheel mounting surfaces.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support accurate fitment, performance, and durability for the listed rear applications.
