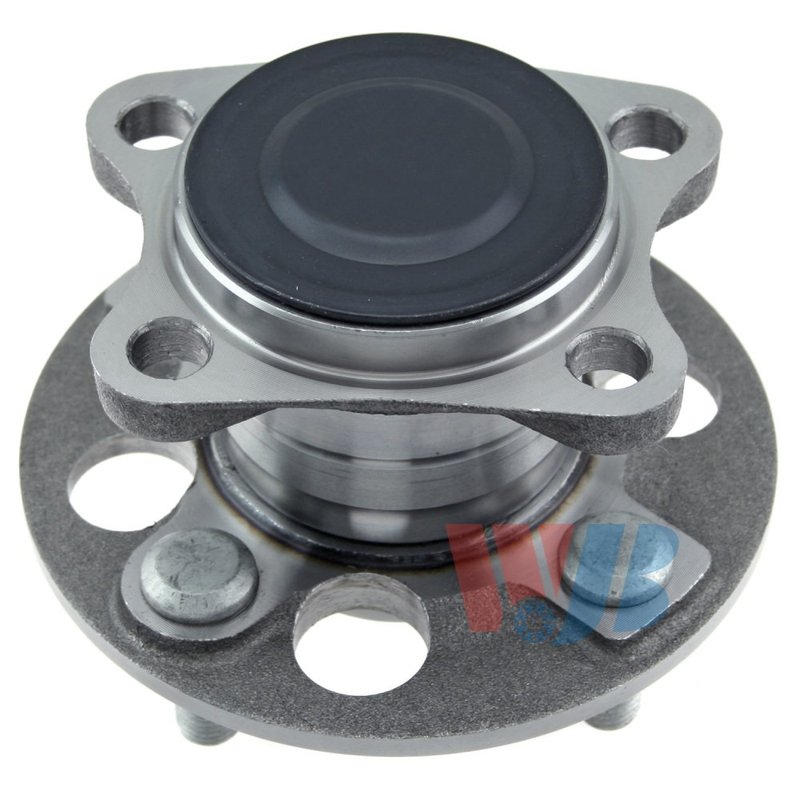

InMotion WA512371 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Toyota Yaris

InMotion WA512371 is a rear wheel bearing and hub assembly built for 2006-2007 Toyota Yaris models. It is engineered from OE data and measurements for direct replacement fitment, with precision manufacturing focused on proper alignment, smooth wheel rotation, and long service life.

Key Features

• Direct replacement rear hub assembly for 2006-2007 Toyota Yaris
• Part number WA512371 for easy identification
• 4 wheel stud design with 4 flange bolt holes
• Modified flange shape with 134.8 flange diameter
• 53.8 wheel pilot diameter and 73.7 hub pilot diameter
• 54.6 brake pilot diameter and 59.8 flange offset
• Built using OE data and application-specific measurements
• Anti-lock brake sensor not included

Detailed Description

This InMotion wheel bearing and hub assembly is made for the rear position on the Toyota Yaris and is intended as a direct OE-style replacement for the original hub. WA512371 is manufactured with strict quality-control criteria and high-precision processes to help maintain correct wheel mounting geometry, bearing support, and consistent fitment on the designated application. The 4-stud, 4-bolt-hole configuration and specified pilot diameters support accurate installation on the rear hub location.

Compatible With 2006-2007 Toyota Yaris, rear. This part cross-references Monroe Shocks & Struts (e.g., 172286) for the same application.

Common Problems This Part Can Address

• Excessive wheel play or looseness at the rear hub
• Noise from a worn wheel bearing and hub assembly
• Uneven wheel mounting caused by damaged hub components
• Vibration related to hub wear or improper wheel support
• Fitment issues when replacing a worn rear hub on a Toyota Yaris

Installation Notes and Tips

Confirm rear-position fitment before ordering and verify the wheel stud count, bolt circle diameter, and pilot dimensions against the removed part. Because the anti-lock brake sensor is not included, reuse the existing sensor setup where applicable and inspect related wiring and mounting points during service. Always follow factory torque specifications and check brake and wheel component clearances after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support proper fit, performance, and durability on the specified Toyota Yaris applications.
