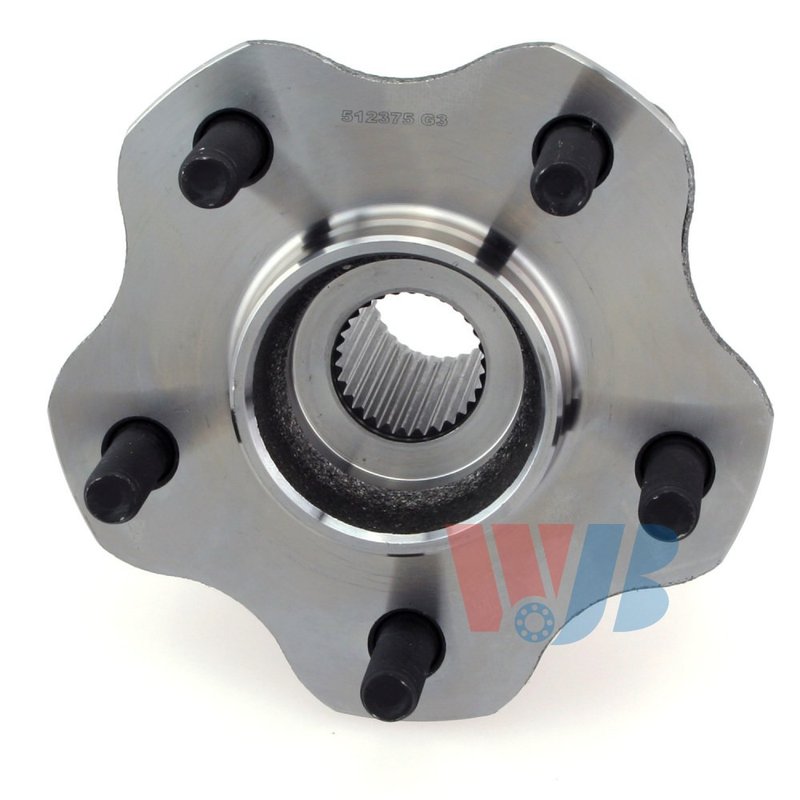

InMotion WA512375 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Infiniti M35

InMotion WA512375 is a rear wheel bearing and hub assembly built for 2006-2008 INFINITI M35 Standard Grade applications. It is engineered from OE data and measurements to match the original fit, helping restore smooth wheel rotation, proper hub support, and reliable ABS sensor function.

• Direct replacement rear hub assembly for 2006-2008 INFINITI M35 Standard Grade
• 29-spline design with 5 wheel studs
• ABS sensor included for integrated wheel speed signal support
• 4 flange bolt holes with a modified flange shape
• Wheel pilot diameter: 66.0 mm
• Brake pilot diameter: 68.0 mm
• Hub pilot diameter: 84.0 mm
• Bolt circle diameter: 114.3 mm (4.213 in)
• Flange diameter: 148.0 mm; flange offset: 69.0 mm

OE-Style Fit and Construction

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards. The WA512375 is built as a direct replacement for the original rear hub on the INFINITI M35, using OE data to support correct fitment, performance, and service life. For shoppers searching for a rear wheel hub assembly for 2006-2008 INFINITI M35, WA512375 provides the key dimensions and sensor integration needed for a proper repair.

Common Problems This Part Can Address

• Wheel bearing noise from the rear hub area
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel rotation or rough bearing operation
• Hub wear that affects braking and road feel

Installation Notes

Verify rear fitment by year, model, and Standard Grade application before installation. Confirm the 29-spline configuration, 5-stud pattern, and sensor connection match the original part on your vehicle. Proper torque procedures and clean mounting surfaces help ensure correct hub seating and long-term service.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fitment and durability. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
