OE Quality
60-Day Returns
InMotion

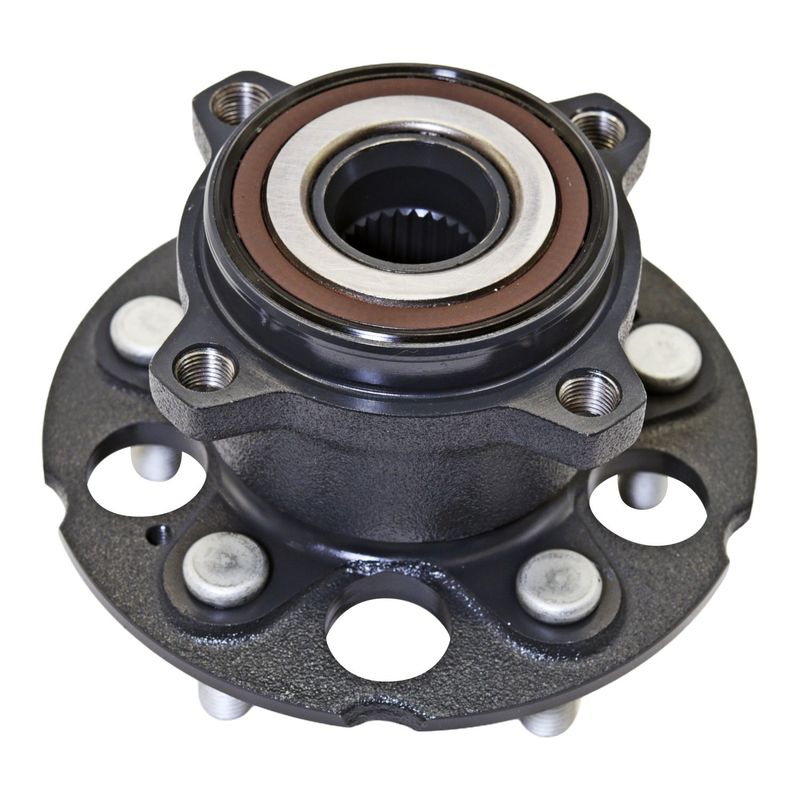

InMotion WA512392HD Wheel Bearing and Hub Assembly - Rear
| Brand | InMotion WA512392HD |
|---|---|
| Position | Rear |
| Spline Quantity | 28 |
| Hub Pilot Diameter | 2.52 |
| Hub Pilot Diameter | 64.05 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Ball |
| Flange Offset | 2.42 |
| Flange Offset | 61.4 |
| Flange Diameter | 151.75 |
| Flange Diameter | 5.97 |
| Abs Ring Type | Magnetic encoder |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.47 |
| Flange Bolt Size (mm) | 12 |
| Flange Bolt Thread Size | M12-1.5 |
| Hub Centerbore Diameter (in) | 4.5 |
| Hub Centerbore Diameter (mm) | 114.3 |
| Lug Bolt Thread Size | M12-1.25 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 96 |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Wiring Harness Included | No |
| Fits | Honda · 6 vehicles |
Cross-references MOOG Hub Assemblies 512392, Timken HA590530 and 42200TP7A01 for the same application. See all 4.
$112.40Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options
InMotion WA512392HD Wheel Bearing and Hub Assembly - Rear
This part fits 6 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Drive Type | Position | Notes |
|---|---|---|---|---|---|
| 2015 | Honda | Crosstour | AWD | Rear | Premium Grade |
| 2014 | Honda | Crosstour | AWD | Rear | Premium Grade |
| 2013 | Honda | Crosstour | AWD | Rear | Premium Grade |
| 2012 | Honda | Crosstour | AWD | Rear | Premium Grade |
| 2011 | Honda | Accord Crosstour | AWD | Rear | Premium Grade |
| 2010 | Honda | Accord Crosstour | AWD | Rear | Premium Grade |
| No rows match your filter. | |||||
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Hub Assemblies — 512392Timken — HA59053042200TP7A01BR930774
