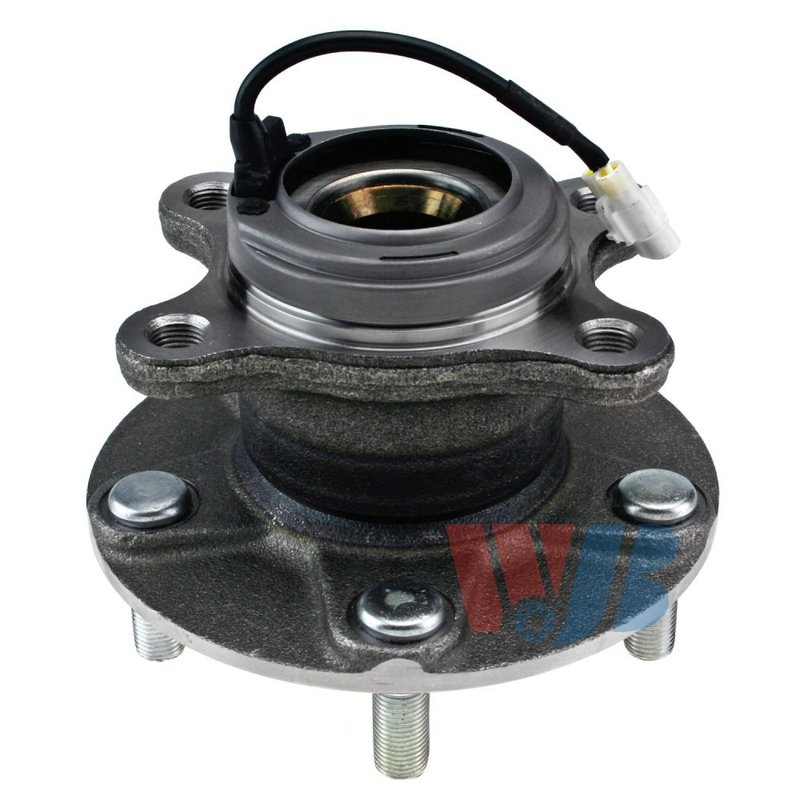

InMotion WA512393 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for SX4

The InMotion WA512393 is a rear wheel bearing and hub assembly built for 2007-2013 Suzuki SX4 models with standard grade fitment. It is engineered from OE data and measurements to match the original application, helping restore proper wheel support, sensor function, and hub alignment.

• Direct replacement wheel bearing and hub assembly for the rear position
• Fits 2007-2013 Suzuki SX4, rear, Standard Grade
• 24-spline design with 5 wheel studs
• ABS sensor included for vehicles equipped with wheel speed sensing
• OE-based dimensions for fitment, performance, and service life
• Flange bolt hole quantity: 4; bolt circle diameter: 114.3 mm

Fitment and Application Details

Compatible With 2007-2013 Suzuki SX4 rear hub service applications, this assembly is built around the specified hub and brake interface dimensions. Key measurements include a 60.0 mm wheel pilot diameter, 62.0 mm brake pilot diameter, 71.1 mm hub pilot diameter, 60.0 mm flange offset, and 140.0 mm flange diameter. The integrated ABS sensor supports proper wheel speed signal operation where equipped.

Part number WA512393 is a practical OE-style replacement when servicing a worn rear hub on the Suzuki SX4. It is designed for direct replacement use and follows the original application data for consistent installation and fit. WA512393 is also the part number to reference when ordering or verifying the correct rear hub assembly for this vehicle.

What This Part Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive wheel play or looseness at the rear axle
• ABS warning light concerns related to hub-mounted sensing
• Uneven hub seating caused by incorrect dimensions or wear
• Rear wheel vibration tied to bearing or hub deterioration

Installation Notes and Tips

Confirm rear-position fitment before installation and verify the 24-spline, 5-stud, and 114.3 mm bolt circle specifications against the removed part. Inspect the mating surfaces, axle interface, and brake components for wear or damage before assembly. Proper torque procedures and clean mounting surfaces help support correct hub seating and long-term service.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built to match the designated application using OE data and measurements, supporting accurate fitment and dependable service on the Suzuki SX4 rear hub application.
