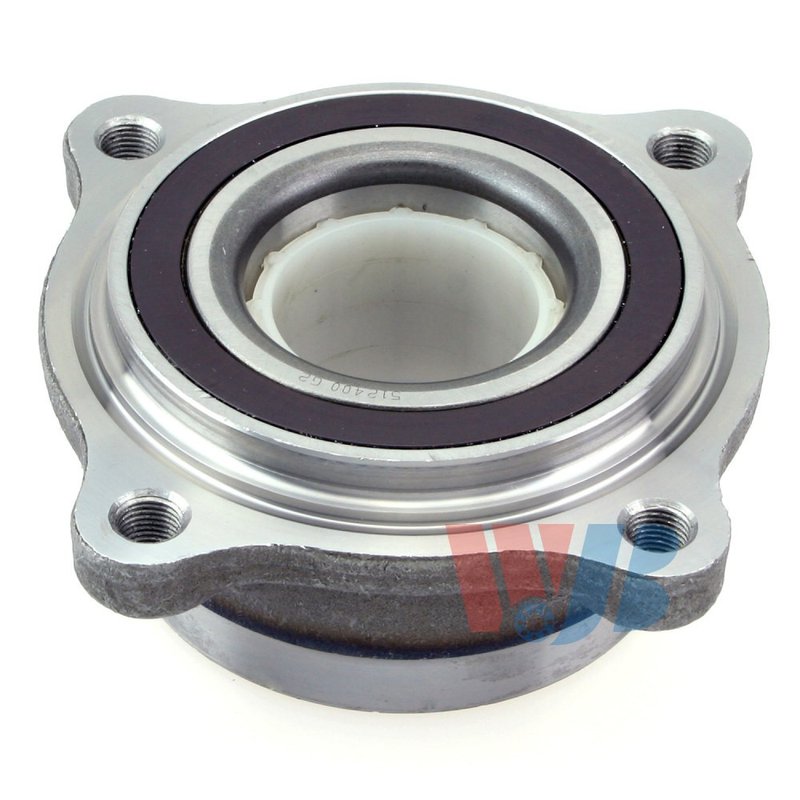

InMotion WA512400 Wheel Bearing Assembly - Rear

Rear Wheel Bearing Assembly for Toyota Sequoia

The InMotion WA512400 is a new rear wheel bearing assembly built for 2008-2020 Toyota Sequoia Standard Grade applications. It uses OE data and measurements for direct replacement fitment, with a ball bearing design, magnetic encoder ring, and a 4-bolt knuckle mounting pattern.

For Toyota Sequoia rear wheel bearing replacement, WA512400 is engineered for precise hub fitment, stable wheel support, and long service life in the designated application.

Key Features

• Fits 2008-2020 Toyota Sequoia, rear, Standard Grade
• New wheel hub assembly from InMotion, part number WA512400
• Ball bearing construction for rear driveline support
• Magnetic encoder ABS ring with 96 teeth
• Non-driven hub assembly
• Hub pilot diameter: 113.35 mm (4.46 in)
• Hub centerbore diameter: 142 mm (5.59 in)
• Flange shape: circle; flange offset: 50.5 mm (1.99 in)
• M12-1.25 lug bolt thread size
• 4 mounting bolts to knuckle
• No ABS sensor included; no wiring harness included

Detailed Description

InMotion WA512400 is a rear wheel bearing assembly designed as a direct replacement for the original hub on compatible Toyota Sequoia models. The assembly is manufactured using high-precision processes and strict quality-control criteria, with OE-based measurements used to match fitment, performance, and durability requirements. This makes it a practical choice for Toyota Sequoia rear wheel bearing service where the original hub assembly has worn, become noisy, or developed play.

As a Toyota Sequoia rear hub assembly, WA512400 includes a magnetic encoder ring for ABS-related wheel speed signal reading, while remaining a non-driven design. The circular flange, 4-bolt knuckle attachment, and M12-1.25 lug thread specification support correct installation in the designated rear position. Part number WA512400 is also a useful reference when searching for a Toyota Sequoia rear wheel hub assembly or rear wheel bearing replacement by application.

What It Helps Address

• Wheel bearing noise from the rear hub area
• Excessive wheel play or looseness at the hub
• ABS wheel speed signal issues related to a worn encoder ring
• Uneven hub rotation caused by bearing wear
• Rear-end vibration traced to hub assembly condition

Installation Notes and Tips

Confirm rear-position fitment before ordering and verify the hub pilot diameter, centerbore, and lug thread size against the original part. WA512400 uses a 4-bolt knuckle mounting pattern and does not include an ABS sensor or wiring harness, so reuse or separate replacement of related components may be required during service. For Toyota Sequoia rear wheel bearing replacement, inspect the knuckle, axle area, and ABS tone/encoder surfaces before installation.

Quality Assurance

InMotion manufactures this hub assembly with OE data, precise measurements, and strict quality-control standards to support correct application fitment and dependable service in the specified Toyota Sequoia rear use case. Part number WA512400 is built as a new replacement component for the listed application.
