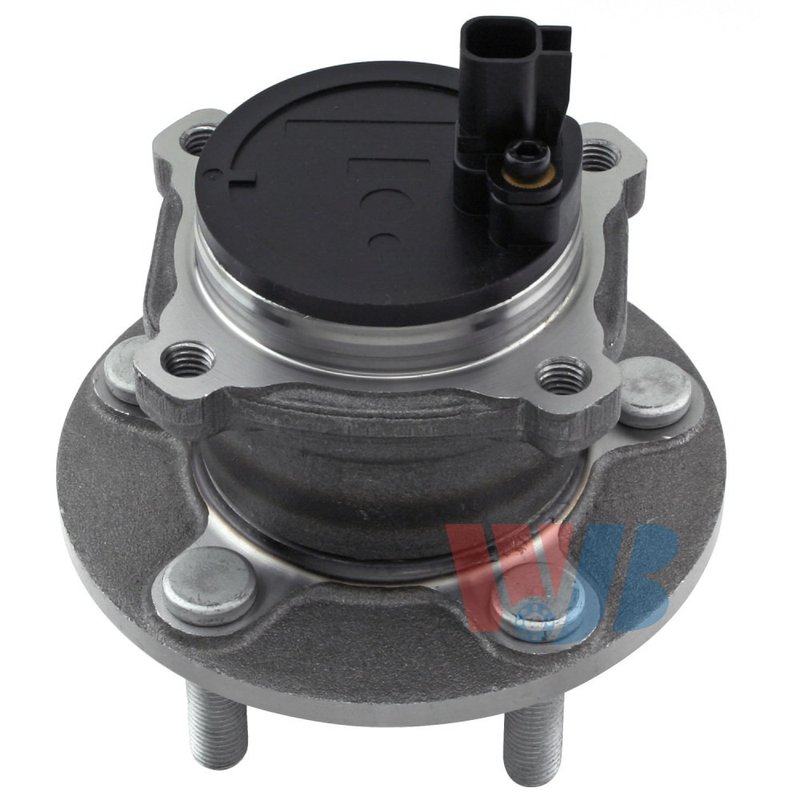

InMotion WA512411 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Volvo

InMotion WA512411 is a rear wheel bearing and hub assembly engineered for precise OE-style fitment on select Volvo applications. Built from OE data and measurements, it is designed as a direct replacement for the original rear hub assembly on Volvo C30, C70, S40, and V50 models.

Key Features

• Rear wheel bearing and hub assembly for select Volvo vehicles
• Part number WA512411
• 5 wheel studs with a 4-bolt flange design
• Integrated ABS sensor included
• Modified flange shape with 63.0 flange offset
• Flange diameter: 136.0 mm
• Bolt circle diameter: 107.7 mm / 4.257 in
• Wheel pilot diameter: 63.2 mm
• Brake pilot diameter: 63.4 mm
• Hub pilot diameter: 73.8 mm

Detailed Description

InMotion WA512411 is manufactured with high-precision processes and strict quality-control standards to deliver consistent fitment and dependable rear-wheel service. This wheel bearing and hub assembly is built for the rear position and uses OE-based dimensions to match the original mounting and hub geometry on 2005-2013 Volvo C30, 2006-2013 Volvo C70, 2005-2011 Volvo S40, and 2005-2011 Volvo V50 applications. If you are searching for a rear wheel bearing hub assembly for Volvo C30, Volvo C70, Volvo S40, or Volvo V50, WA512411 provides a direct replacement format for the designated vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2007-2013 Volvo C30, rear, Standard Grade
• Fits 2006-2013 Volvo C70, rear, Standard Grade
• Fits 2005-2011 Volvo S40, rear, Standard Grade
• Fits 2005-2011 Volvo V50, rear, Standard Grade

What It Helps Address

• Rear wheel bearing noise or growling from a worn hub assembly
• ABS warning light concerns related to a failed hub-mounted sensor
• Wheel looseness or play caused by bearing wear
• Uneven rear wheel rotation from damaged hub components
• Fitment issues when replacing an OE-style rear hub on Volvo C30, C70, S40, or V50

Installation Notes and Tips

Confirm rear-position fitment by year, model, and standard grade application before installation. Compare the flange bolt pattern, wheel stud count, pilot diameters, and ABS sensor configuration against the original part to verify match-up. For best results, inspect related rear suspension and brake components during replacement and torque all fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support accurate fitment and long service life. WA512411 is built as a direct replacement rear wheel bearing and hub assembly for the listed Volvo applications.
