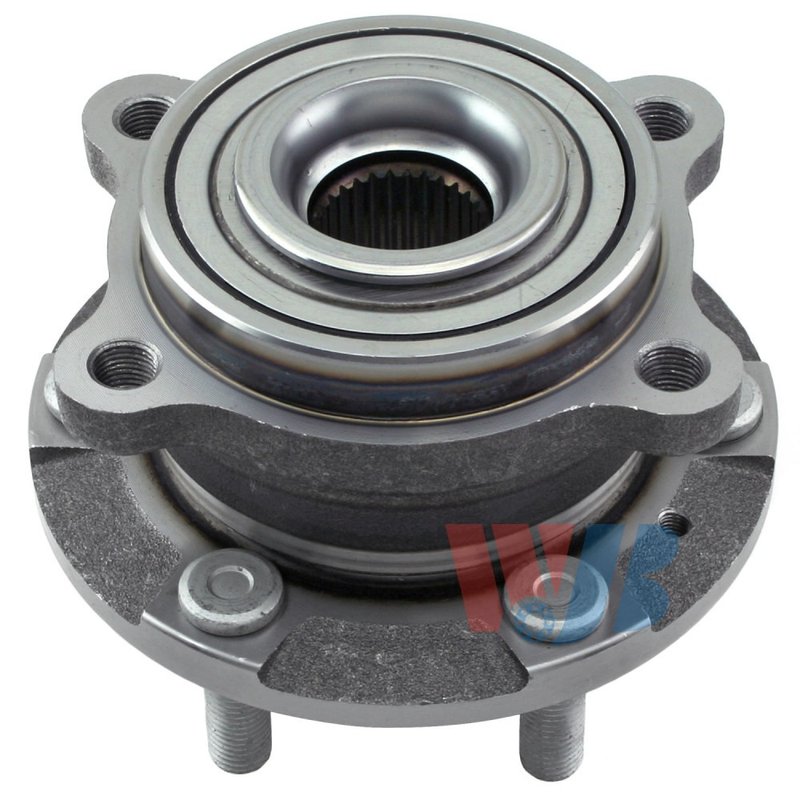

InMotion WA512415 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Kia Borrego

InMotion WA512415 is a rear wheel bearing and hub assembly built for 2009-2011 Kia Borrego Standard Grade applications. Engineered from OE data and measurements, this hub assembly is made for direct replacement use where precise fitment, stable wheel support, and consistent bearing performance matter.

• Rear wheel bearing and hub assembly for 2009-2011 Kia Borrego
• 30-spline design with 6 wheel studs
• 4 flange bolt holes and modified flange shape
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 67.0 mm
• Brake pilot diameter: 69.0 mm
• Hub pilot diameter: 92.0 mm
• Flange offset: 53.4 mm
• ABS sensor not included

Fitment Details

Compatible With 2009-2011 Kia Borrego, rear. This application coverage makes WA512415 a direct-fit option for rear hub service on the Kia Borrego, including 2009 Kia Borrego rear, 2010 Kia Borrego rear, and 2011 Kia Borrego rear Standard Grade models.

Product Overview

InMotion WA512415 is manufactured with high-precision processes and strict quality-control standards to maintain dimensional accuracy and dependable operation. The assembly is designed around OE specifications so the hub, pilot diameters, bolt pattern, and stud count align with the original rear suspension and wheel mounting requirements on the Kia Borrego. This part number, WA512415, is a practical replacement choice when servicing a worn rear hub on the Kia Borrego.

Common Problems This Part Can Address

• Rear wheel play or looseness from a worn hub assembly
• Noise from a failing wheel bearing area
• Uneven wheel mounting caused by damaged hub components
• Vibration related to hub or bearing wear
• Service replacement for a rear hub with incorrect fitment or damaged studs

Installation Notes

Verify rear position, spline count, bolt circle, pilot diameters, and stud configuration before installation. Because the ABS sensor is not included, confirm whether the vehicle setup requires a separate sensor transfer or reuse of existing components. Always compare the original hub assembly to WA512415 before final installation on a 2009-2011 Kia Borrego.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support proper fit and long-term service life. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
