OE Quality
60-Day Returns
InMotion

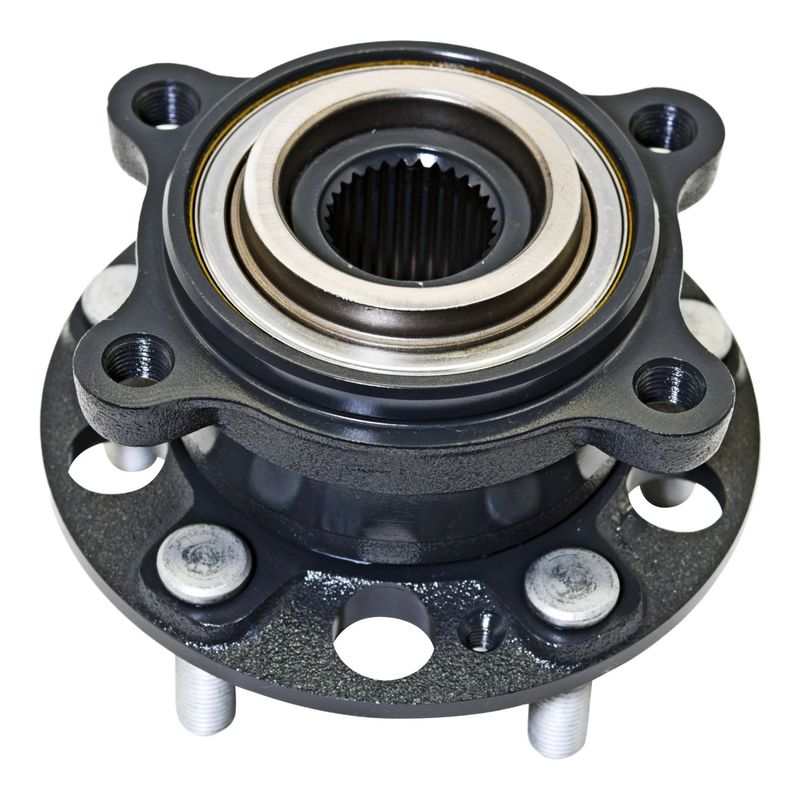

InMotion WA512417HD Wheel Bearing and Hub Assembly - Rear
| Brand | InMotion WA512417HD |
|---|---|
| Position | Rear |
| Spline Quantity | 31 |
| Hub Pilot Diameter | 3.11 |
| Hub Pilot Diameter | 78.900000000000006 |
| Flange Shape | Circle |
| Anti Lock Brake Sensor Included | No |
| Bearing Type | Ball |
| Flange Offset | 2.0099999999999998 |
| Flange Offset | 51 |
| Flange Diameter | 147 |
| Flange Diameter | 5.79 |
| Abs Ring Type | Magnetic encoder |
| Driven Or Non-driven | Driven |
| Flange Bolt Size (in) | 0.55000000000000004 |
| Flange Bolt Size (mm) | 14 |
| Flange Bolt Thread Size | M14-1.25 |
| Hub Centerbore Diameter (in) | 4.72 |
| Hub Centerbore Diameter (mm) | 120 |
| Lug Bolt Thread Size | M12-1.25 |
| New Or Remanufactured | New |
| Number Of Abs Sensor Ring Teeth | 96 |
| Number Of Flange Bolts Included | 5 |
| Number Of Lug Bolts Included | 0 |
| Number Of Mounting Bolts To Knuckle | 4 |
| Wiring Harness Included | No |
| Fits | Hyundai and Kia · 22 vehicles |
Cross-references MOOG Hub Assemblies 512417, Timken HA590326 and 527303M100 for the same application. See all 4.
$112.29Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.
Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options
InMotion WA512417HD Wheel Bearing and Hub Assembly - Rear
This part fits 22 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
| Year | Make | Model | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|
| 2017 | Kia | K900 | — | — | Rear | Premium Grade |
| 2016 | Hyundai | Equus | — | — | Rear | Premium Grade |
| 2016 | Hyundai | Genesis Coupe | Coupe | 2 Door | Rear | Premium Grade |
| 2016 | Kia | K900 | — | — | Rear | Premium Grade |
| 2015 | Hyundai | Equus | — | — | Rear | Premium Grade |
| 2015 | Hyundai | Genesis Coupe | Coupe | 2 Door | Rear | Premium Grade |
| 2015 | Kia | K900 | — | — | Rear | Premium Grade |
| 2014 | Hyundai | Equus | — | — | Rear | Premium Grade |
| 2014 | Hyundai | Genesis | — | — | Rear | Premium Grade |
| 2014 | Hyundai | Genesis Coupe | — | — | Rear | Premium Grade |
| 2013 | Hyundai | Equus | — | — | Rear | Premium Grade |
| 2013 | Hyundai | Genesis | — | — | Rear | Premium Grade |
| 2013 | Hyundai | Genesis Coupe | — | — | Rear | Premium Grade |
| 2012 | Hyundai | Equus | — | — | Rear | Premium Grade |
| 2012 | Hyundai | Genesis | — | — | Rear | Premium Grade |
| 2012 | Hyundai | Genesis Coupe | — | — | Rear | Premium Grade |
| 2011 | Hyundai | Equus | — | — | Rear | Premium Grade |
| 2011 | Hyundai | Genesis | — | — | Rear | Premium Grade |
| 2011 | Hyundai | Genesis Coupe | — | — | Rear | Premium Grade |
| 2010 | Hyundai | Genesis | — | — | Rear | Premium Grade |
| 2010 | Hyundai | Genesis Coupe | — | — | Rear | Premium Grade |
| 2009 | Hyundai | Genesis | — | — | Rear | Premium Grade |
| No rows match your filter. | ||||||
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Hub Assemblies — 512417Timken — HA590326527303M100BR930726
