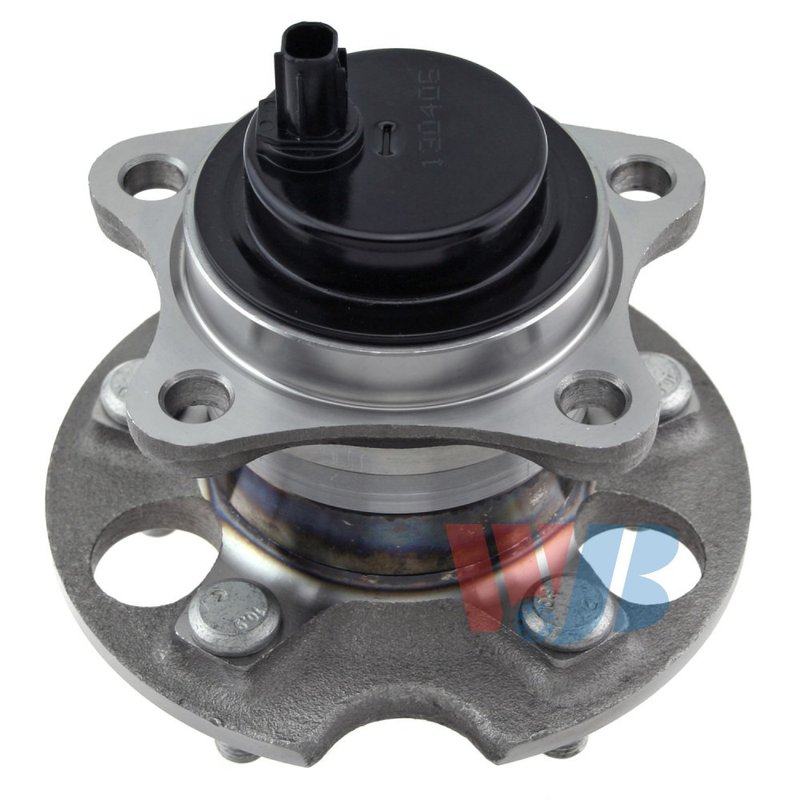

InMotion WA512420 Wheel Bearing and Hub Assembly - Rear Right

Rear Right Wheel Hub Assembly for Highlander

InMotion WA512420 is a rear right wheel bearing and hub assembly built for 2008-2013 Toyota Highlander Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original design.

• Fits 2008-2013 Toyota Highlander, rear right
• Wheel bearing and hub assembly for driveline and axle service
• Anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Hub pilot diameter: 84.0 mm
• Flange diameter: 152.0 mm with modified flange shape
• Flange offset: 72.0 mm

OE-Style Fitment and Design

This InMotion wheel hub assembly is manufactured with precision processes and strict quality-control criteria to match the original rear right hub on the Toyota Highlander. The WA512420 part number is built for direct replacement use, helping maintain proper wheel mounting, brake alignment, and ABS signal integration on the 2008-2013 Toyota Highlander, rear right.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Addresses

• Wheel bearing noise from a worn rear hub assembly
• ABS warning light caused by a failed sensor-equipped hub
• Wheel looseness or play at the rear right corner
• Uneven hub or bearing wear affecting ride quality
• Brake or wheel mounting issues tied to hub damage

Installation Notes and Tips

Confirm rear right position, bolt circle, stud count, and pilot diameters before installation. Inspect the mating surfaces, axle area, and brake components for wear or corrosion, and verify ABS connector routing and sensor seating during replacement. The WA512420 is specified for 2008-2013 Toyota Highlander Standard Grade rear right applications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support correct fitment and long service life. WA512420 is built as a direct replacement wheel bearing and hub assembly for the listed Toyota Highlander applications.
