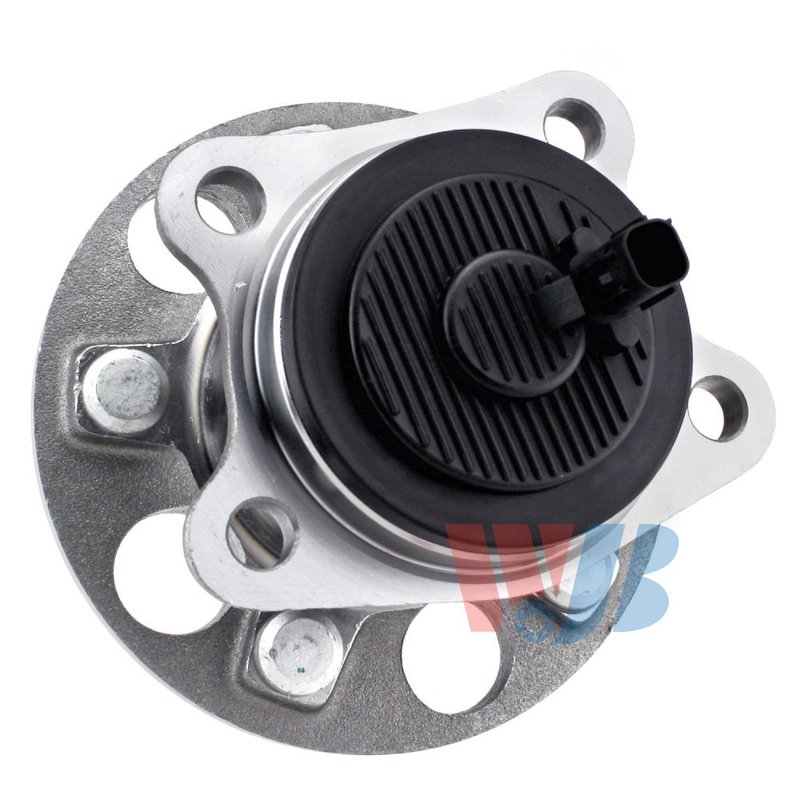

InMotion WA512422 Wheel Bearing and Hub Assembly - Rear Right

Wheel Bearing Hub Assembly for Toyota Venza

InMotion WA512422 is a rear right wheel bearing and hub assembly built for 2009-2016 Toyota Venza Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

Key Features

• Fits 2009-2016 Toyota Venza, rear right
• Direct replacement wheel bearing and hub assembly
• Built using OE data and dimensional measurements
• Anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• Bolt circle diameter: 114.3 mm / 4.5 in
• Flange diameter: 152.0 mm; flange offset: 72.0 mm
• Wheel pilot diameter: 60.0 mm; brake pilot diameter: 62.0 mm; hub pilot diameter: 84.0 mm
• Modified trapezoid flange shape

Detailed Description

InMotion WA512422 is a precision-manufactured rear right hub assembly for the Toyota Venza, designed to match the original mounting and dimensional requirements of the vehicle. The assembly uses OE-based measurements to support proper wheel location, bearing operation, and ABS sensor integration on 2009-2016 Toyota Venza Standard Grade models. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Issues This Part May Address

• Wheel bearing noise from the rear right corner
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failing hub sensor assembly
• Uneven hub rotation or rough bearing feel
• Vibration or instability traced to hub wear

Installation Notes and Tips

Verify rear right fitment before installation on your Toyota Venza and confirm the bolt circle, pilot diameters, and stud count match the original part. Inspect the mating surfaces, axle area, and ABS connector condition during replacement, and torque all fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly under strict quality-control criteria using high-precision production methods. Each WA512422 unit is built for the designated application to support consistent fitment, performance, and service life.
