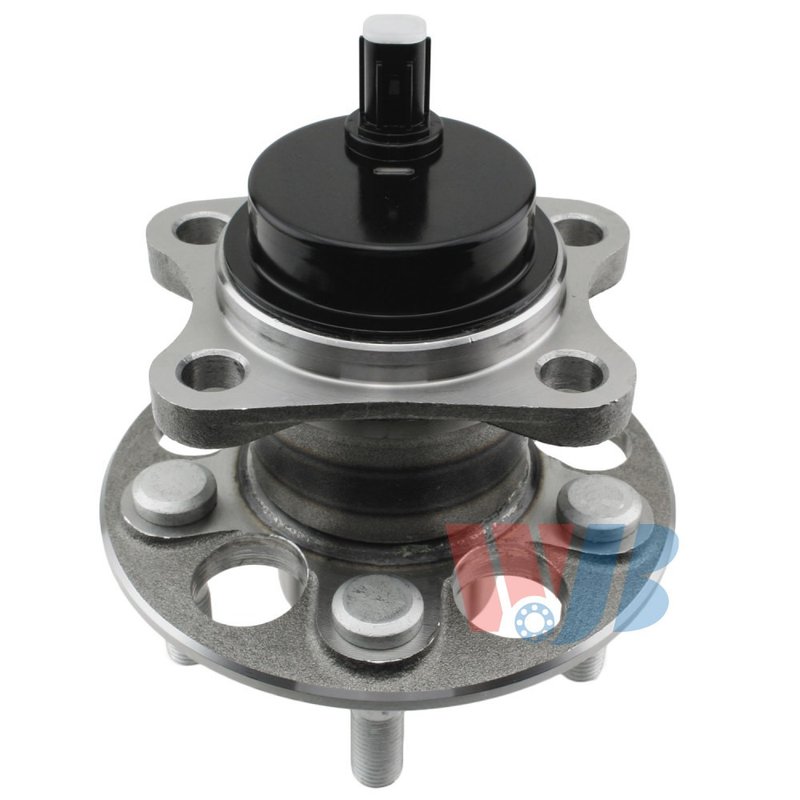

InMotion WA512425 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Scion xD

InMotion WA512425 is a rear wheel bearing and hub assembly built for 2008-2014 Scion xD models with Standard Grade fitment. It is engineered from OE data and measurements to match the original application for proper fit, performance, and service life.

• Fits 2008-2014 Scion xD, rear
• Part number: WA512425
• Wheel stud quantity: 5
• Flange bolt hole quantity: 4
• ABS sensor included: Yes
• Bolt circle diameter: 100.0 mm
• Hub pilot diameter: 73.9 mm
• Wheel pilot diameter: 54.0 mm
• Brake pilot diameter: 54.9 mm
• Flange diameter: 135.0 mm
• Flange offset: 60.0 mm

OE-Style Fit and Construction

This wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards. InMotion WA512425 is made as a direct replacement for the original rear hub on the Scion xD, using application-specific dimensions to support correct wheel mounting, brake alignment, and ABS sensor integration.

For shoppers searching for a rear wheel bearing and hub assembly for 2008-2014 Scion xD, WA512425 provides the key OE-style measurements needed for a proper replacement. The 5-stud hub design, 100 mm bolt circle, and included ABS sensor make it a practical choice for restoring rear hub function on the Scion xD.

Common Problems This Part Can Address

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting due to worn hub components
• Brake or wheel fitment issues related to hub wear

Installation Notes

Confirm rear position and Standard Grade application before installation. Verify flange, pilot, and bolt-circle measurements against the original part, and inspect surrounding brake and suspension components during replacement. Proper torque procedures should be followed for the wheel studs and hub fasteners.

Quality Assurance

InMotion manufactures these hub assemblies using OE data and measurements, with strict quality-control criteria for fitment, performance, and longevity. Part number WA512425 is built as a direct replacement for the designated application.
