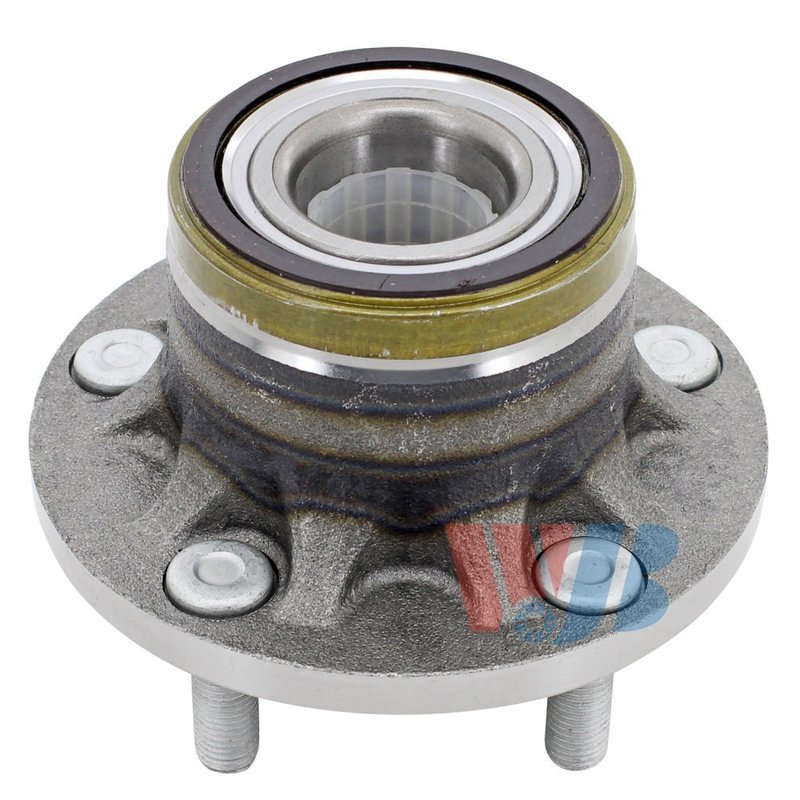

InMotion WA512439 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Transit Connect

InMotion WA512439 is a rear wheel bearing and hub assembly built for 2010-2013 Ford Transit Connect Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and sensor integration matched to the original design.

Key Features

• Fits 2010-2013 Ford Transit Connect, rear
• Wheel bearing and hub assembly for direct replacement service
• Anti-lock brake sensor included
• 5 wheel studs with 108.0 mm bolt circle diameter
• Wheel pilot diameter: 63.3 mm
• Brake pilot diameter: 63.3 mm
• Hub pilot diameter: 81.2 mm
• Flange diameter: 136.0 mm
• Interchange reference: HUB141

Detailed Description

InMotion WA512439 is a precision-built rear hub assembly for the Ford Transit Connect, designed to match OE dimensions and mounting points for the listed Standard Grade vehicles. The assembly includes the anti-lock brake sensor and uses a 5-stud, 108.0 mm bolt circle layout, helping maintain proper wheel mounting and brake system alignment. If you are replacing a worn rear hub on a 2010, 2011, 2012, or 2013 Ford Transit Connect, WA512439 provides the correct fitment profile for the rear position.

This part cross-references HUB141 for the same application.

Common Replacement Reasons

• Rear wheel bearing noise or growling
• Excessive hub play or looseness
• ABS warning light related to hub sensor failure
• Uneven wheel mounting or vibration from a worn hub
• Restoring proper rear wheel support on a Ford Transit Connect

Installation Notes and Tips

Confirm rear-position fitment before ordering and verify the wheel pilot, brake pilot, hub pilot, and bolt circle dimensions against the original part. Because the ABS sensor is included, inspect the connector and wiring during installation to ensure the system reads correctly after replacement. Always torque wheel fasteners to the vehicle manufacturer’s specification.

Quality Assurance

InMotion manufactures these hub assemblies using high-precision processes and strict quality-control criteria. Each unit is engineered from OE data and measurements to support correct fitment, performance, and service life on the specified Ford Transit Connect rear applications.
