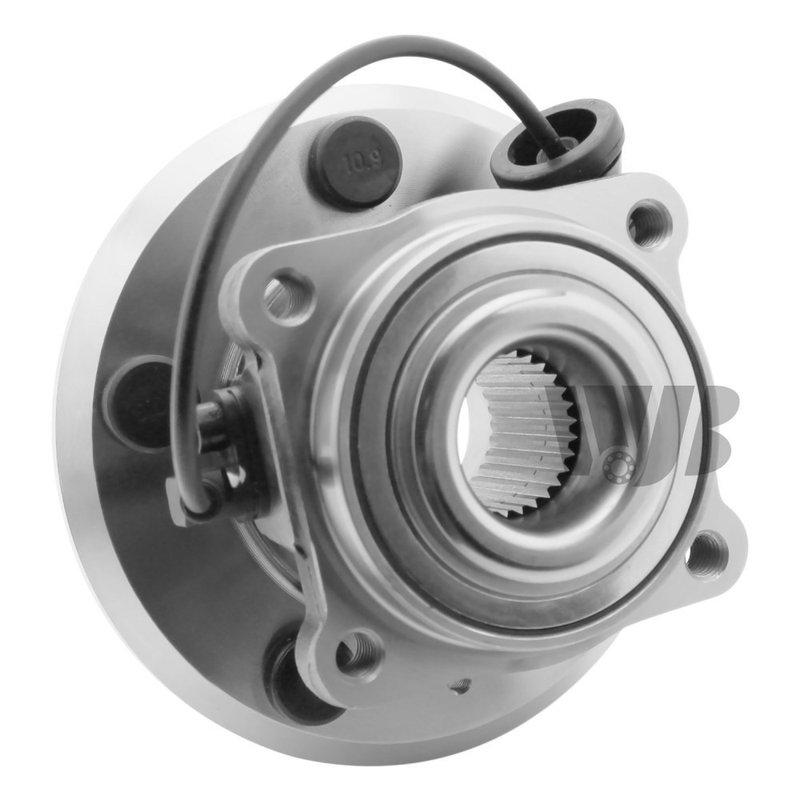

InMotion WA512440HD Wheel Bearing and Hub Assembly - Rear

Brand InMotion WA512440HD
Position Rear
Spline Quantity 30
Hub Pilot Diameter 2.65
Hub Pilot Diameter 67.400000000000006
Flange Shape Circle
Anti Lock Brake Sensor Included Yes
Bearing Type Ball
Flange Offset 2.5499999999999998
Flange Offset 64.75
Flange Diameter 157
Flange Diameter 6.18
Abs Connector Shape Linear
Abs Ring Type Tone ring
Driven Or Non-driven Driven
Flange Bolt Size (in) 0.55000000000000004
Flange Bolt Size (mm) 14
Flange Bolt Thread Size M14-1.5
Hub Centerbore Diameter (in) 4.72
Hub Centerbore Diameter (mm) 120
Lug Bolt Thread Size M10-1.5
New Or Remanufactured New
Number Of Abs Sensor Ring Teeth 47
Number Of Flange Bolts Included 5
Number Of Lug Bolts Included 0
Number Of Mounting Bolts To Knuckle 4
Wiring Harness Included Yes
Wiring Harness Length (in) 10
Fits Chevrolet and GMC · 16 vehicles

Cross-references MOOG Hub Assemblies 512440, SKF BR930838 and Timken HA590470 for the same application. See all 6.

$143.93Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $143.93
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options
InMotion WA512440HD Wheel Bearing and Hub Assembly - Rear

Related reading

This part fits 16 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2017ChevroletEquinoxRearPremium Grade
2017GMCTerrainRearPremium Grade
2016ChevroletEquinoxRearPremium Grade
2016GMCTerrainRearPremium Grade
2015ChevroletEquinoxRearPremium Grade
2015GMCTerrainRearPremium Grade
2014ChevroletEquinoxRearPremium Grade
2014GMCTerrainRearPremium Grade
2013ChevroletEquinoxRearPremium Grade
2013GMCTerrainRearPremium Grade
2012ChevroletEquinoxRearPremium Grade
2012GMCTerrainRearPremium Grade
2011ChevroletEquinoxRearPremium Grade
2011GMCTerrainRearPremium Grade
2010ChevroletEquinoxRearPremium Grade
2010GMCTerrainRearPremium Grade
Directly replaces or cross-references 6 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Hub Assemblies — 512440SKF — BR930838Timken — HA59047059047025979186RW20-132
