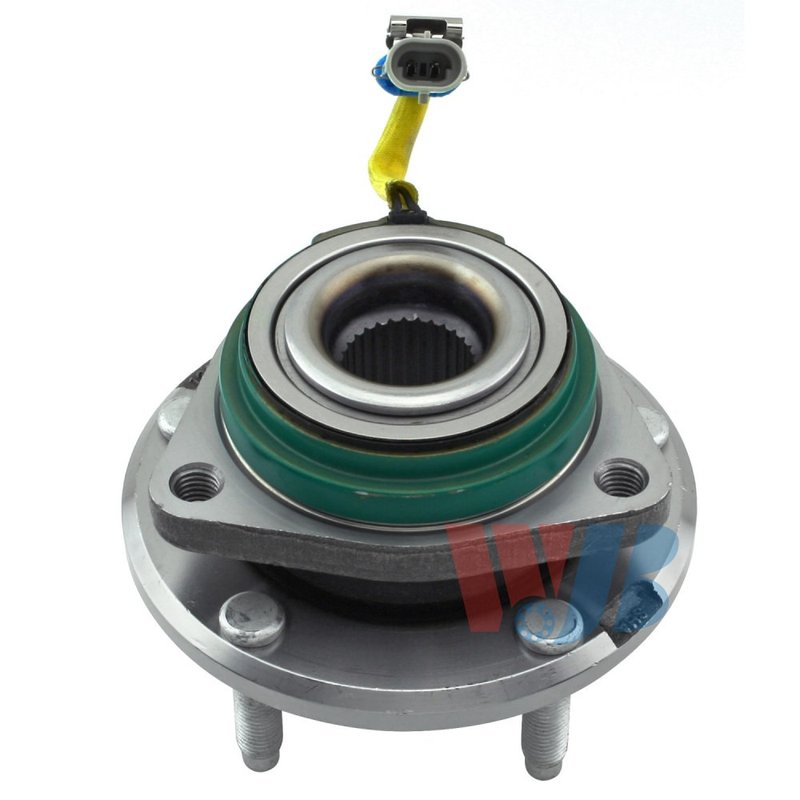

InMotion WA512442 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Corvette

The InMotion WA512442 is a rear wheel bearing and hub assembly engineered for 2009-2013 Chevrolet Corvette applications. Built from OE data and measurements, it is made for direct replacement use where precise fitment, stable wheel support, and consistent hub performance matter.

For Chevrolet Corvette rear service, this hub assembly combines a 33-spline design, 5 wheel studs, and integrated ABS sensor coverage in one unit. The WA512442 is built to match the specified application with the dimensions needed for proper wheel and brake interface.

Key Features

• Direct replacement wheel bearing and hub assembly for the rear position
• Fits 2009-2013 Chevrolet Corvette, rear
• 33 spline quantity for the designated driveline application
• 5 wheel studs with 3 flange bolt holes
• Anti-lock brake sensor included
• OE-based dimensions for fitment, performance, and service life
• Part number WA512442 for easy identification

Detailed Description

InMotion WA512442 is a rear wheel bearing hub assembly designed for the 2009-2013 Chevrolet Corvette. It is manufactured with high-precision processes and strict quality-control standards, using OE data and measurements to match the original application. Key dimensions include a 70.0 mm wheel pilot diameter, 70.5 mm brake pilot diameter, 91.2 mm hub pilot diameter, 145.5 mm flange diameter, 41.9 mm flange offset, and 120.9 mm bolt circle diameter. The integrated ABS sensor helps maintain proper wheel speed signal function in the specified rear application. If you are replacing a worn Chevrolet Corvette rear hub, WA512442 provides the correct configuration for the listed model years.

What This Part Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to hub sensor failure
• Uneven wheel support caused by hub wear
• Fitment issues when replacing the original rear hub on a Chevrolet Corvette

Installation Notes and Tips

Confirm rear-position fitment before ordering and verify spline count, bolt pattern, and pilot diameters against the removed part. Clean the mounting surface thoroughly before installation and inspect related brake and suspension components for wear. Because this assembly includes an ABS sensor, check connector routing and sensor alignment during installation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Quality Assurance

InMotion manufactures this hub assembly using OE-based engineering data and strict quality-control criteria to support accurate fitment and dependable operation in the specified Chevrolet Corvette rear application.
