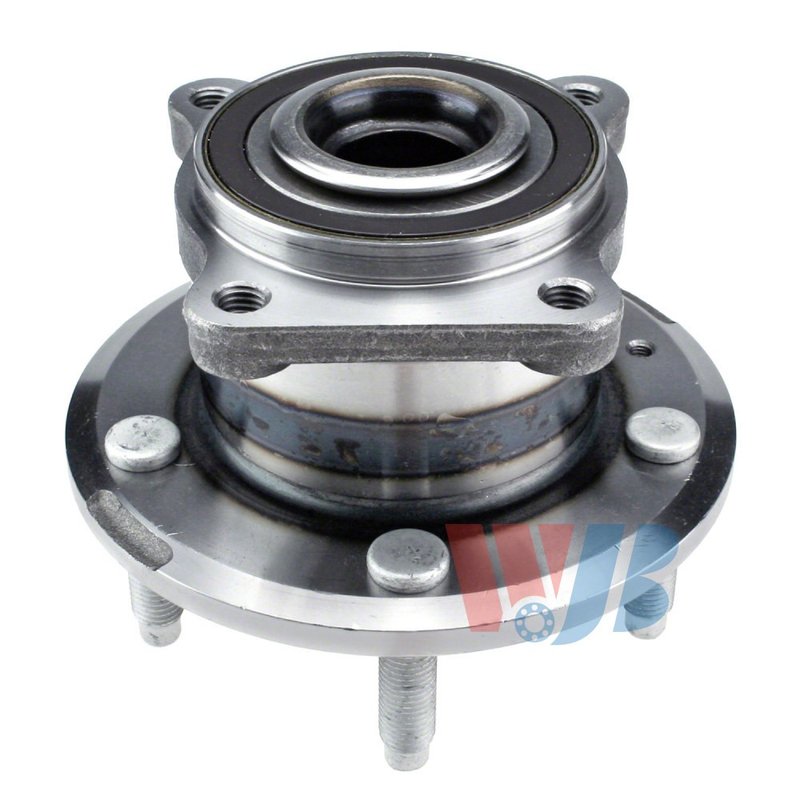

InMotion WA512447 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Cadillac ELR

InMotion WA512447 is a rear wheel bearing and hub assembly engineered for direct replacement on the 2014-2016 Cadillac ELR, Standard Grade. Built from OE data and measurements, this hub assembly is designed to match the original fit, mounting points, and sensor integration for a precise service replacement.

Key Features

• Fits 2014-2016 Cadillac ELR, rear
• Part number: WA512447
• 5 wheel studs with a 4-bolt flange pattern
• ABS sensor included for proper wheel speed signal integration
• Wheel pilot diameter: 70.1 mm
• Brake pilot diameter: 70.6 mm
• Hub pilot diameter: 82.5 mm
• Bolt circle diameter: 115.0 mm (4.527 in)
• Flange diameter: 146.0 mm with modified flange shape
• Flange offset: 64.8 mm

Detailed Description

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards to support consistent fitment and long service life. The WA512447 is built as a direct replacement for the original rear hub on the Cadillac ELR, using OE data to align the bearing, flange, and sensor features with the factory application. For shoppers searching for a rear wheel hub assembly for 2014-2016 Cadillac ELR or a Cadillac ELR rear wheel bearing hub assembly, this part number WA512447 provides the application-specific dimensions needed for a proper repair.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Wheel bearing noise from the rear of the vehicle
• Excessive wheel play or looseness at the hub
• ABS warning light related to wheel speed sensor input
• Uneven hub rotation or rough bearing feel
• Vibration or humming that changes with vehicle speed

Installation Notes

Verify rear fitment on the 2014-2016 Cadillac ELR before installation and compare the flange, pilot, and bolt-circle dimensions to the original part. Inspect the mounting surface, axle area, and ABS connector condition during service. Torque fasteners to the vehicle manufacturer’s specifications and confirm proper ABS operation after installation.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support accurate fitment and dependable performance. The WA512447 is intended as a direct replacement wheel bearing and hub assembly for the specified Cadillac ELR rear application.
