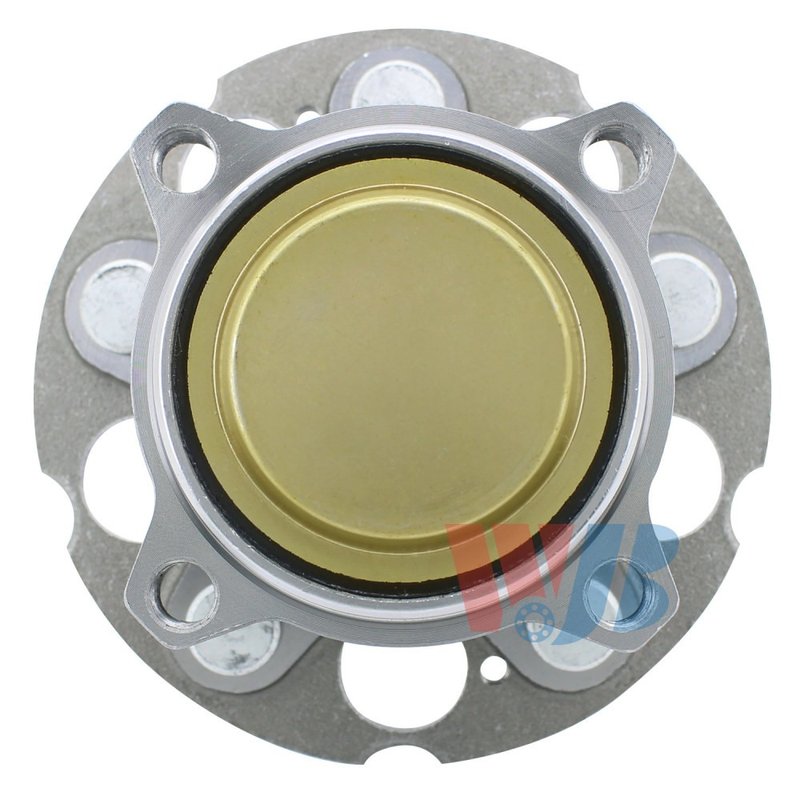

InMotion WA512448 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Acura RDX and Honda CR-V

The InMotion WA512448 wheel bearing and hub assembly is a direct replacement rear hub built from OE data and measurements for accurate fitment. It is engineered for 2013-2018 Acura RDX and 2012-2016 Honda CR-V rear applications, with precision manufacturing focused on proper alignment, performance, and service life.

Key Features

• Direct replacement rear wheel bearing and hub assembly
• Fits 2013-2018 Acura RDX, rear, Standard Grade
• Fits 2012-2016 Honda CR-V, rear, Standard Grade
• OE-based dimensions for application-specific fitment
• 5 wheel studs with 114.3 mm bolt circle diameter
• Square flange design with 4 flange bolt holes
• Hub pilot diameter: 82.0 mm
• Wheel pilot diameter: 56.0 mm
• Brake pilot diameter: 64.0 mm
• Flange diameter: 152.0 mm; flange offset: 61.4 mm
• Anti-lock brake sensor not included

Detailed Description

InMotion WA512448 is a rear wheel bearing and hub assembly designed for Acura RDX and Honda CR-V models that require a precise OE-style replacement. The hub is manufactured with strict quality-control standards and built to match the designated application using original-equipment data, helping ensure correct mounting, wheel location, and dependable operation. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Hub Assembly Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive play or looseness at the rear wheel
• Uneven wheel seating caused by hub wear
• Vibration or roughness related to hub and bearing deterioration
• Fitment issues when replacing a damaged rear hub on Acura RDX or Honda CR-V

Installation Notes and Tips

Confirm rear application, bolt pattern, and pilot dimensions before installation. The ABS sensor is not included, so reuse or source the vehicle’s sensor as required by the repair. Verify brake and wheel interface measurements against the original part before final assembly on the Acura RDX or Honda CR-V.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and controlled inspection criteria to support consistent fit and performance. The WA512448 is built as an OE-data-based replacement for the listed rear applications.
