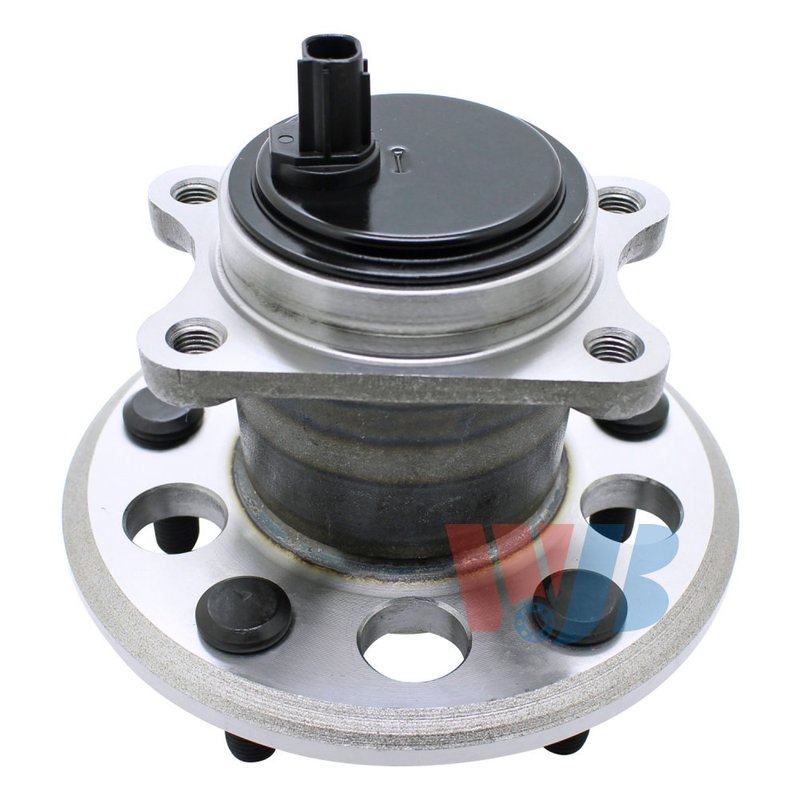

InMotion WA512455 Wheel Bearing and Hub Assembly - Rear Right

Rear Right Wheel Hub Assembly for Toyota and Lexus

InMotion WA512455 is a rear right wheel bearing and hub assembly built for direct replacement service on select Toyota and Lexus vehicles. It is engineered from OE data and measurements for fitment, performance, and service life, with an integrated ABS sensor included.

Key Features

• Rear right wheel bearing and hub assembly
• Direct replacement design based on OE data and measurements
• High-precision manufacturing with strict quality-control criteria
• Anti-lock brake sensor included
• 5 wheel studs, 4 flange bolt holes
• Bolt circle diameter: 114.3 mm
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Hub pilot diameter: 74.0 mm
• Flange diameter: 152.0 mm
• Flange offset: 67.5 mm

Detailed Description

InMotion WA512455 is a wheel bearing and hub assembly for the rear right position on select 2012-2018 Toyota Camry, 2013-2018 Toyota Avalon, 2016-2018 Lexus ES300h, and 2016-2018 Lexus ES350 models. The assembly is manufactured to match original equipment dimensions and application-specific requirements, helping maintain proper wheel mounting, sensor integration, and hub alignment. If you are replacing a worn rear hub on a Toyota Camry, Toyota Avalon, Lexus ES300h, or Lexus ES350, WA512455 provides a direct-fit service part for the listed applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Reasons

• Wheel bearing noise from the rear right corner
• ABS warning light caused by a failing hub sensor assembly
• Excessive wheel play or looseness at the hub
• Uneven brake rotor contact from hub wear or runout
• Restoring proper wheel mounting on a Toyota Camry, Toyota Avalon, Lexus ES300h, or Lexus ES350

Installation Notes and Tips

Verify rear right fitment before installation and confirm the bolt circle, stud count, and pilot diameters match the original hub. Inspect the mating surfaces, axle area, and brake components for wear or corrosion before mounting the new assembly. Because the ABS sensor is included, make sure the connector routing and sensor seating match the vehicle’s original configuration. For best results, follow OE service procedures and torque specifications during installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each WA512455 unit is engineered from OE data and measurements to support correct fitment and consistent performance in the listed rear right applications.
