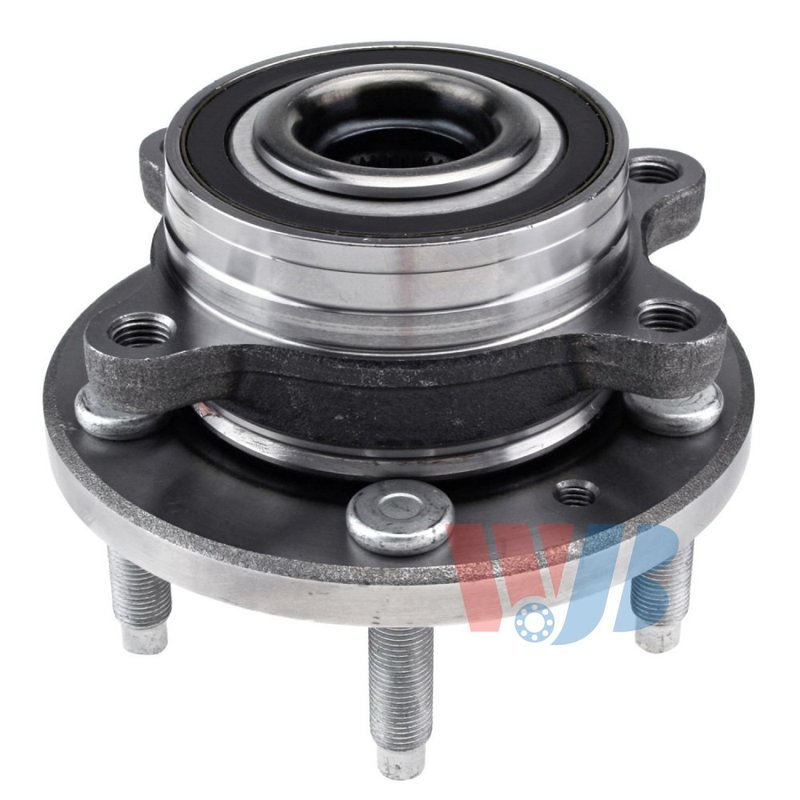

InMotion WA512460 Wheel Bearing and Hub Assembly - Front or Rear

Wheel Bearing Hub Assembly for Ford Explorer

The InMotion WA512460 wheel bearing and hub assembly is built for direct replacement service on select Ford Explorer applications. It is engineered from OE data and measurements, with precision manufacturing and controlled quality checks to support proper fit, wheel mounting, and long-term service life.

• Direct replacement wheel bearing and hub assembly for select Ford Explorer models
• Includes 5 wheel studs and a 4-bolt flange pattern
• 38-spline design
• ABS sensor included
• Hub pilot diameter: 92.0 mm
• Wheel pilot diameter: 63.2 mm
• Brake pilot diameter: 67.9 mm
• Bolt circle diameter: 114.3 mm
• Flange diameter: 145.6 mm
• Flange offset: 42.8 mm

Fitment Details

Compatible with 2011-2012 Ford Explorer, front, standard grade, and 2013-2019 Ford Explorer, rear, standard grade. This InMotion WA512460 hub assembly is a fitment-specific replacement for Ford Explorer front and rear service where the listed application matches the vehicle configuration.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn hub assembly
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to a failed hub sensor
• Uneven wheel mounting or vibration caused by hub wear
• Service replacement needs after bearing or hub damage

Installation Notes

Verify the vehicle year, position, and standard grade application before installation. Confirm spline count, bolt circle diameter, stud count, and sensor configuration against the removed part to ensure correct match. Clean the mounting surface and inspect related brake and suspension components during service.

Quality Assurance

InMotion manufactures this hub assembly using OE-based dimensions and strict quality-control criteria to support accurate fitment and consistent performance. The part is produced as a direct replacement for the original hub assembly on the listed Ford Explorer applications.
