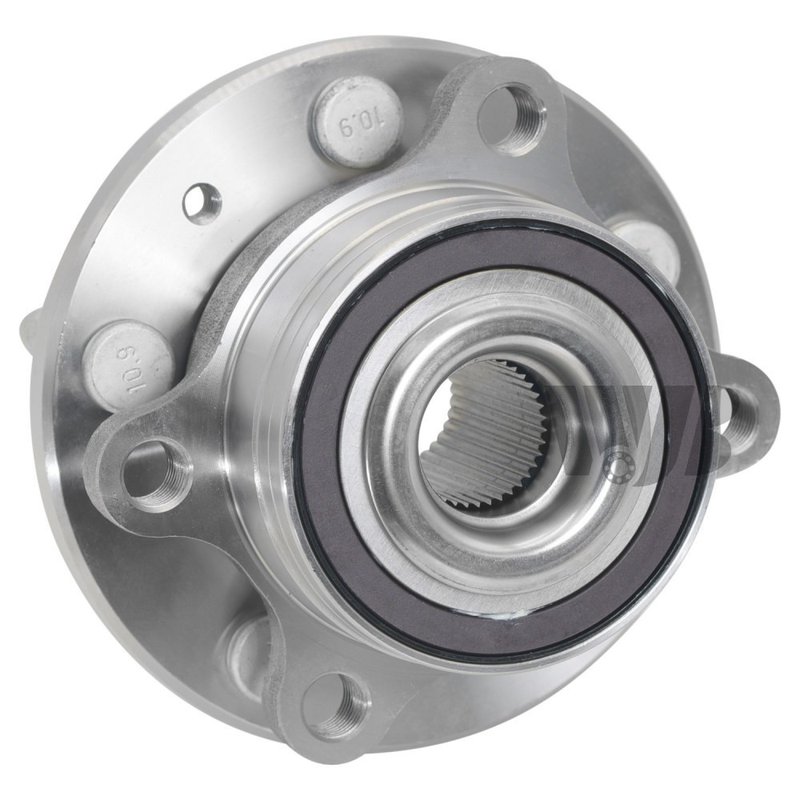

InMotion WA512460HD Wheel Bearing and Hub Assembly - Front or Rear

Rear and Front Wheel Hub Assembly for Explorer

The InMotion WA512460HD wheel bearing and hub assembly is a direct replacement for select Ford Explorer applications. Built to OE data and measurements, it is engineered for precise fitment, stable wheel support, and long service life on the front or rear axle where listed.

Key Features

• Direct replacement wheel bearing and hub assembly for Ford Explorer
• Fits 2011 Ford Explorer, front, and 2012-2019 Ford Explorer, rear
• 38-spline design with 5 wheel studs
• 4 flange bolt holes with 114.3 bolt circle diameter
• Integrated ABS sensor included
• Hub pilot diameter: 92.0 mm
• Wheel pilot diameter: 63.2 mm
• Brake pilot diameter: 67.9 mm
• Flange diameter: 145.6 mm with 42.8 flange offset

Detailed Description

InMotion WA512460HD is manufactured using high-precision processes and strict quality-control standards to match the original hub assembly dimensions. For Ford Explorer service, this hub assembly is built around OE measurements so the bearing, flange, stud pattern, and sensor integration align with the vehicle’s original setup. The result is a replacement part suited for restoring proper wheel mounting, rotation support, and ABS signal function on the specified front or rear position.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel play or looseness caused by a worn hub assembly
• Noise from a failing wheel bearing and hub unit
• ABS warning light concerns related to a faulty hub sensor assembly
• Improper wheel mounting due to damaged studs or flange wear
• Vibration or uneven wheel support at the hub

Installation Notes and Tips

Verify position before installation: this part fits 2011 Ford Explorer, front, and 2012-2019 Ford Explorer, rear. Confirm the 38-spline count, 5-stud pattern, 114.3 bolt circle diameter, and ABS sensor configuration against the original part before assembly. Clean the mounting surface, inspect the knuckle and axle interface, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fit and performance. The WA512460HD is built as a direct replacement for the listed Ford Explorer applications.
