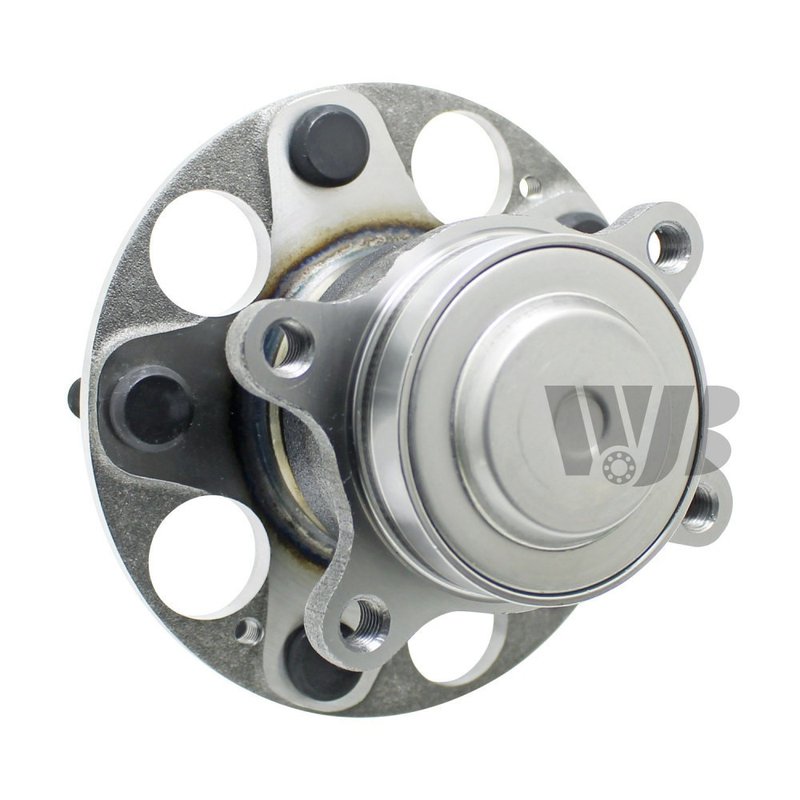

InMotion WA512469 Wheel Bearing and Hub Assembly - Rear
| Brand | InMotion WA512469 |
|---|---|
| Position | Rear |
| Flange Bolt Hole Quantity | 4 |
| Wheel Pilot Diameter | 64.1 |
| Brake Pilot Diameter | 64.1 |
| Wheel Stud Quantity | 5 |
| Hub Pilot Diameter | 69.9 |
| Flange Shape | Trapazoid |
| Anti Lock Brake Sensor Included | Yes |
| Flange Offset | 58.6 |
| Flange Diameter | 151.8 |
| Bolt Circle Diameter | 114.8 |
| Bolt Circle Diameter | 4.507 |
| Fits | Acura and Honda · 4 vehicles |
OE direct replacement. Engineered from OE data for fit, performance, and longevity.
Precision manufactured. Built with strict quality-control criteria for consistent results.
ABS sensor included. Ready for applications that require an integrated sensor.
Rear Wheel Bearing Hub Assembly for Civic and ILX
InMotion WA512469 is a rear wheel bearing and hub assembly built for direct replacement on select Acura and Honda applications. It is engineered from OE data and measurements to support proper fitment, wheel mounting, and long service life on the rear axle.
- Direct replacement rear hub assembly for select 2013-2015 Acura ILX and 2013 Honda Civic applications
- Includes ABS sensor provision: anti-lock brake sensor included
- 5 wheel studs with 4 flange bolt holes
- Hub pilot diameter: 69.9 mm
- Wheel pilot diameter and brake pilot diameter: 64.1 mm
- Bolt circle diameter: 114.8 mm / 4.507 in
- Flange diameter: 151.8 mm with 58.6 mm flange offset
- Trapezoid flange shape for application-specific fitment
Fitment Details
Compatible with 2013 Honda Civic, rear, Standard Grade. Compatible with 2013-2015 Acura ILX, rear, Standard Grade. This part number, WA512469, is specified for rear-position applications only and is built to match the listed OE dimensions.
For shoppers searching for a rear wheel bearing hub assembly for 2013 Honda Civic or 2013-2015 Acura ILX, WA512469 provides the dimensional details needed to confirm wheel, brake, and hub interface requirements before installation. The precision-machined hub assembly is manufactured to strict quality-control criteria and uses OE-based measurements to support correct alignment and dependable operation.
Common Problems This Part Can Address
- Rear wheel bearing noise or rough rotation
- Excessive hub play or looseness at the wheel end
- ABS warning light caused by a failed rear hub sensor assembly
- Improper wheel mounting due to worn hub pilot surfaces
- Vibration or fitment issues related to a damaged rear hub assembly
Installation Notes and Tips
Confirm rear-position fitment, bolt circle diameter, stud count, and pilot diameters before installation. Verify that the ABS sensor connection and mounting points match the vehicle’s original configuration. Always inspect related brake and suspension components for wear before replacing the hub assembly.
Quality Assurance
InMotion manufactures this hub assembly using high-precision processes and OE-based specifications to help ensure consistent fitment and performance. WA512469 is produced under strict quality-control standards for the listed Acura ILX and Honda Civic rear applications.
| Year | Make | Model | Submodel | Body Type | # Doors | Position | Notes |
|---|---|---|---|---|---|---|---|
| 2015 | Acura | ILX | — | — | — | Rear | Standard Grade |
| 2014 | Acura | ILX | — | — | — | Rear | Standard Grade |
| 2013 | Acura | ILX | — | — | — | Rear | Standard Grade |
| 2013 | Honda | Civic | EX-L | Sedan | 4 Door | Rear | Standard Grade |
