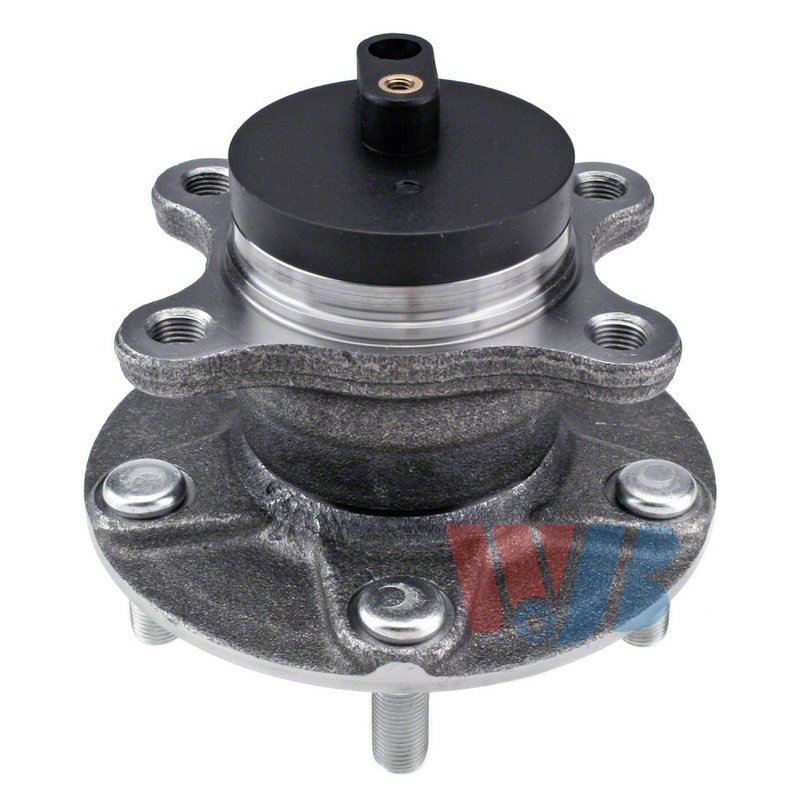

InMotion WA512486 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Suzuki SX4

InMotion WA512486 is a rear wheel bearing and hub assembly built for 2008-2013 Suzuki SX4 models with standard grade fitment. It is engineered from OE data and measurements to match the original application for proper fit, performance, and service life.

For shoppers searching for a rear wheel hub assembly for Suzuki SX4, WA512486 provides the key dimensions and sensor integration needed for a direct replacement on the rear axle.

Key Features

• Fits 2008-2013 Suzuki SX4, rear, standard grade
• Wheel bearing and hub assembly for driveline and axle service
• ABS sensor included for vehicles equipped with wheel speed sensing
• 5 wheel studs with 114.3 mm bolt circle diameter
• 4 flange bolt holes for secure mounting
• Wheel pilot diameter: 60.0 mm
• Brake pilot diameter: 62.0 mm
• Hub pilot diameter: 72.0 mm
• Flange diameter: 140.0 mm with 60.0 mm flange offset
• Part number: WA512486

Detailed Description

InMotion WA512486 is a rear wheel bearing and hub assembly designed for the Suzuki SX4 platform from 2008 through 2013. The assembly is manufactured using high-precision processes and OE-based measurements to support correct alignment of the hub, wheel, and brake components. With a 5-stud, 114.3 mm bolt pattern and integrated ABS sensor, this rear hub assembly is built to match the original configuration for the listed application. WA512486 is a direct replacement option for drivers servicing a worn or noisy rear hub on a Suzuki SX4.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling from the hub area
• Excessive wheel play or looseness at the rear axle
• ABS warning light caused by a failed hub sensor assembly
• Uneven brake rotor seating from a worn hub pilot surface
• Vibration or runout related to hub wear

Installation Notes and Tips

Confirm rear fitment before ordering: Fits 2008-2013 Suzuki SX4, rear. Verify the 5-stud, 114.3 mm bolt circle, pilot diameters, and ABS sensor configuration against the removed part. Clean the mounting surface thoroughly and inspect related brake and axle components during installation. Torque fasteners to the vehicle manufacturer’s specifications and check ABS operation after installation.

Quality Assurance

InMotion manufactures this hub assembly with strict quality-control criteria and OE-based engineering to support proper fitment and long-term service in the specified Suzuki SX4 rear application. Part number WA512486 is built as a direct replacement for the original rear hub assembly.
