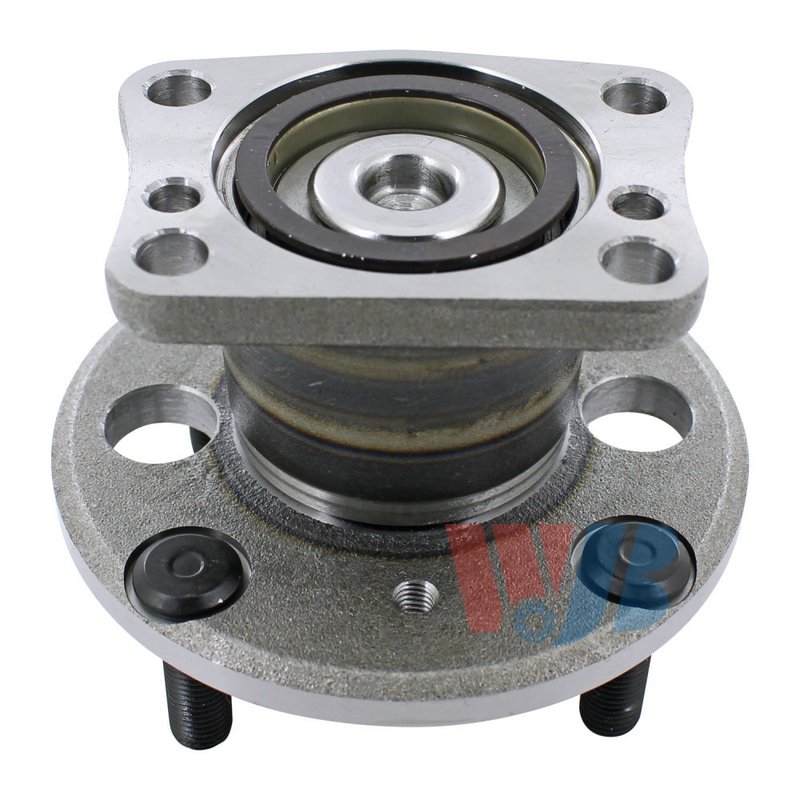

InMotion WA512490 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing and Hub Assembly for Fiesta

The InMotion WA512490 is a rear wheel bearing and hub assembly built for 2011-2019 Ford Fiesta Standard Grade applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the listed vehicle application.

• Fits 2011-2019 Ford Fiesta, rear, Standard Grade
• Part number: WA512490
• Anti-lock brake sensor included
• 4 flange bolt holes and 4 wheel studs
• Flange diameter: 130.9 mm
• Bolt circle diameter: 108.2 mm
• Wheel pilot diameter: 63.3 mm
• Brake pilot diameter: 63.5 mm
• Hub pilot diameter: 64.0 mm
• Modified trapezoid flange shape
• Flange offset: 68.5 mm

Fitment and Application Details

This rear hub assembly is specified for Ford Fiesta models from 2011 through 2019. If you are searching for a rear wheel bearing and hub assembly for Ford Fiesta, WA512490 provides the listed OE-style dimensions and sensor configuration for the rear position.

Part number WA512490 is also a direct reference point when comparing a rear Ford Fiesta hub assembly by bolt pattern, pilot diameters, and ABS sensor inclusion. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Rear wheel bearing noise or rough rotation
• Excessive wheel play at the rear hub
• ABS warning light concerns related to the hub sensor setup
• Improper wheel mounting caused by worn hub surfaces
• Vibration or instability from a damaged rear hub assembly

Installation Notes and Tips

Confirm rear-position fitment before ordering and match the vehicle’s Standard Grade configuration. Verify flange bolt hole count, wheel stud count, bolt circle diameter, and pilot diameters against the original part before installation. Because the ABS sensor is included, inspect the connector routing and tone-ring interface during replacement. For best results, torque fasteners to factory specifications and check wheel bearing preload and brake component clearance after installation.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and OE-based measurements to support proper fit, performance, and service life. The WA512490 is built under strict quality-control criteria and is intended as a direct replacement for the original rear hub assembly on the listed Ford Fiesta applications.
