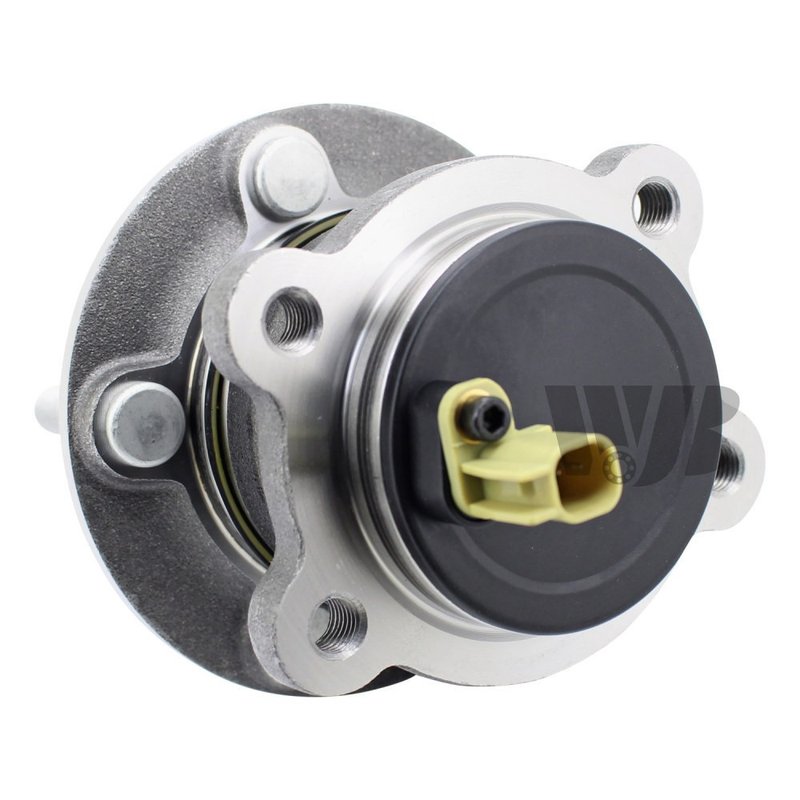

InMotion WA512496 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Ford Escape, MKC, and C-Max

InMotion WA512496 is a rear wheel bearing and hub assembly built for direct replacement on select Ford and Lincoln applications. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

Compatible with 2013-2019 Ford Escape rear, 2015-2019 Lincoln MKC rear, and 2013-2018 Ford C-Max rear, this assembly includes an integrated ABS sensor and is manufactured with precise quality-control standards.

Key Features

• Direct replacement rear wheel bearing and hub assembly
• OE-based design for fitment, performance, and durability
• Integrated anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• Wheel pilot diameter: 63.4 mm
• Brake pilot diameter: 63.5 mm
• Hub pilot diameter: 81.4 mm
• Bolt circle diameter: 108.0 mm / 4.5 in.
• Flange diameter: 136.4 mm with 72.8 mm flange offset

Detailed Description

InMotion WA512496 is designed as a rear hub assembly replacement for Ford Escape, Lincoln MKC, and Ford C-Max models listed above. The assembly is manufactured using high-precision processes and strict quality-control criteria, with dimensions matched to OE data to support proper wheel mounting and consistent operation. The rectangular flange shape, 5-stud layout, and integrated ABS sensor make it a practical choice for restoring rear hub function on the specified vehicles.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Solve

• Rear wheel bearing noise or rough rotation
• Excessive wheel play or looseness at the hub
• ABS warning light concerns related to the hub sensor
• Uneven wheel mounting caused by hub wear
• Vibration or instability from a worn rear hub assembly

Installation Notes and Tips

Verify rear fitment by year, make, model, and position before installation. Confirm the bolt circle, pilot diameters, stud count, and ABS sensor connection match the original assembly on the vehicle. Clean the mounting surface thoroughly and inspect related brake and suspension components during replacement.

For best results, compare the original hub dimensions to WA512496 before installation on a Ford Escape, Lincoln MKC, or Ford C-Max rear application.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support accurate fitment and dependable service on the listed applications.
