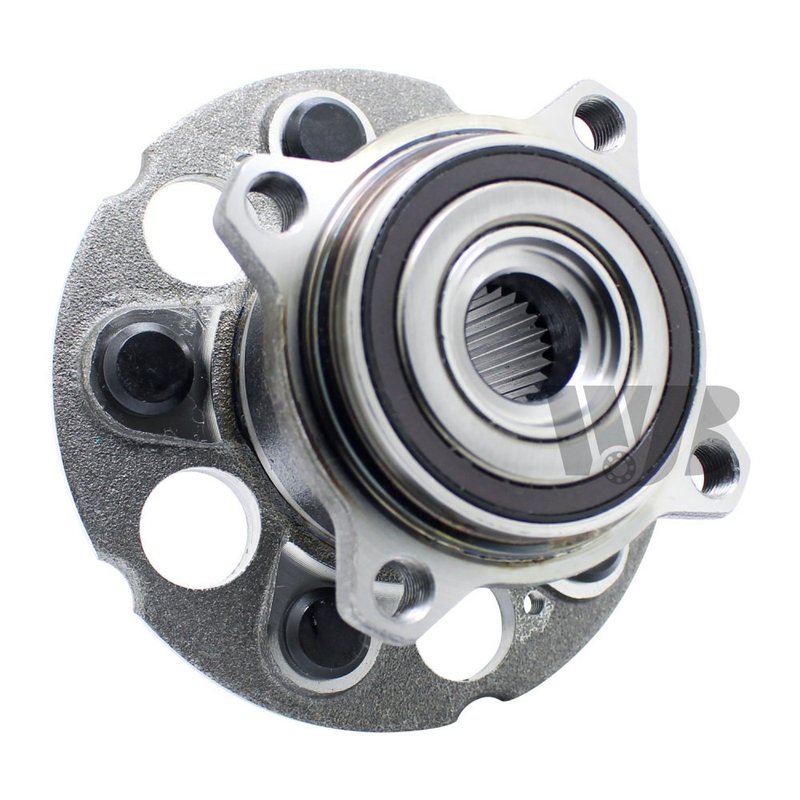

InMotion WA512501 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Honda CR-V and Acura RDX

InMotion WA512501 is a rear wheel bearing and hub assembly built for direct replacement service on select Honda and Acura applications. It is engineered from OE data and measurements for proper fit, stable wheel mounting, and long service life in the rear position.

Compatible with 2012-2016 Honda CR-V rear and 2013-2015 Acura RDX rear, this hub assembly includes an integrated ABS sensor and the correct hub geometry for the listed vehicles. The WA512501 is a practical choice when replacing a worn rear hub on a Honda CR-V or Acura RDX.

Key Features

• Part number: WA512501
• Rear wheel bearing and hub assembly
• Integrated anti-lock brake sensor included
• 23-spline design
• 5 wheel studs with 4 flange bolt holes
• Square flange shape
• Wheel pilot diameter: 64.1 mm
• Brake pilot diameter: 64.1 mm
• Hub pilot diameter: 81.8 mm
• Bolt circle diameter: 114.0 mm / 4.5 in
• Flange diameter: 151.5 mm
• Flange offset: 61.5 mm

Detailed Description

InMotion WA512501 is manufactured using high-precision processes and strict quality-control standards to match the original rear hub assembly dimensions for the listed vehicles. The design uses OE data to support correct fitment, consistent wheel mounting, and dependable operation in the rear axle position. For shoppers searching for a rear wheel bearing hub assembly for 2012-2016 Honda CR-V or 2013-2015 Acura RDX, WA512501 provides the specified hub and sensor configuration in one assembly.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Replacement Reasons

• Rear wheel bearing noise or growling
• ABS warning light related to hub sensor failure
• Wheel play or looseness at the rear hub
• Uneven wheel rotation caused by hub wear
• Damaged or corroded rear hub assembly

Installation Notes

Confirm rear-position fitment by year, make, and model before installation. Verify the 23-spline, 5-stud, 4-bolt flange configuration and the 114.0 mm bolt circle diameter against the removed part. Inspect the mating surfaces, axle interface, and ABS connector condition during replacement, and torque all fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support accurate fitment and consistent performance on the specified Honda CR-V and Acura RDX rear applications.
