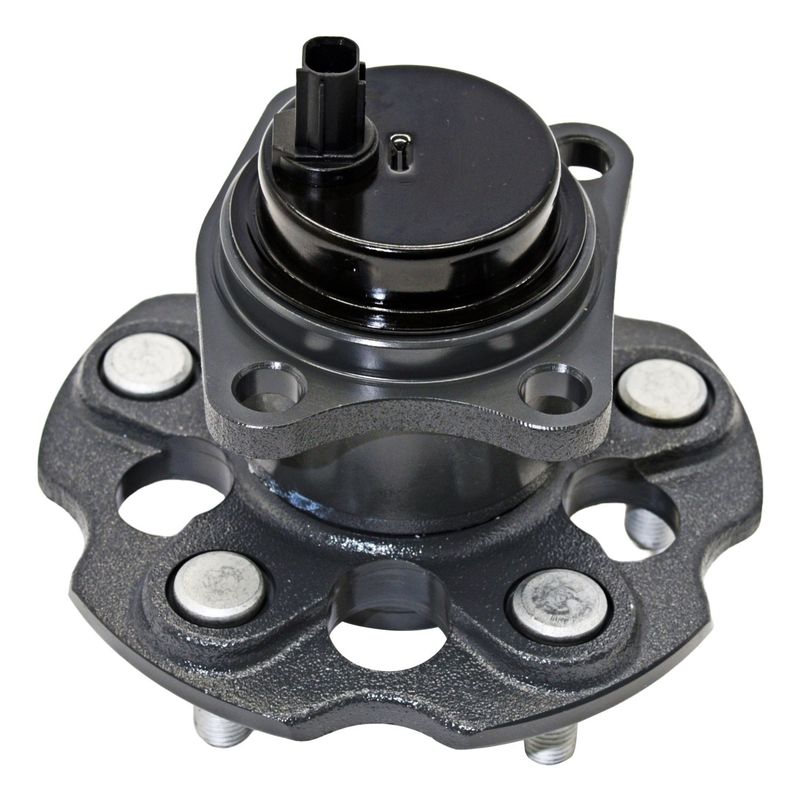

InMotion WA512509HD Wheel Bearing and Hub Assembly - Rear
OE Quality 60-Day Returns
InMotion

InMotion WA512509HD Wheel Bearing and Hub Assembly - Rear

Brand InMotion WA512509HD
Position Rear
Hub Pilot Diameter 2.44
Hub Pilot Diameter 62
Flange Shape Circle
Anti Lock Brake Sensor Included Yes
Bearing Type Ball
Flange Offset 2.52
Flange Offset 64
Flange Diameter 152
Flange Diameter 5.98
Abs Connector Shape Cover
Abs Ring Type Magnetic encoder
Driven Or Non-driven Non-driven
Flange Bolt Size (in) 0.47
Flange Bolt Size (mm) 12
Flange Bolt Thread Size M12-1.5
Hub Centerbore Diameter (in) 4.5
Hub Centerbore Diameter (mm) 114.3
Lug Bolt Thread Size 12.5
New Or Remanufactured New
Number Of Abs Sensor Ring Teeth 96
Number Of Flange Bolts Included 5
Number Of Lug Bolts Included 0
Number Of Mounting Bolts To Knuckle 4
Wiring Harness Included No
Fits Toyota · 12 vehicles

Cross-references MOOG Hub Assemblies 512509, Timken HA590464 and 590464 for the same application. See all 4.

$133.32Free shipping
In stock · usually ships same day before 1pm CST
Step 1 — Confirm fitment
Free return shipping if it doesn't fit when you check fitment here first.

Select your vehicle to confirm fitment
Verify this part fits before purchasing — free returns if it doesn't
Step 2 — Quantity
Order total $133.32
Free shipping to the continental U.S.
Free returns within 60 days if it doesn't fit when fitment is verified.
Not what you need? See all Wheel Bearing and Hub Assembly options
InMotion WA512509HD Wheel Bearing and Hub Assembly - Rear

Related reading

This part fits 12 vehicles
Always verify fitment with your vehicle's VIN if unsure. Submodel & trim restrictions may apply.
YearMakeModelPositionNotes
2020ToyotaMiraiRearPremium Grade
2019ToyotaMiraiRearPremium Grade
2018ToyotaMiraiRearPremium Grade
2018ToyotaPrius VRearPremium Grade
2017ToyotaMiraiRearPremium Grade
2017ToyotaPrius VRearPremium Grade
2016ToyotaMiraiRearPremium Grade
2016ToyotaPrius VRearPremium Grade
2015ToyotaPrius VRearPremium Grade
2014ToyotaPrius VRearPremium Grade
2013ToyotaPrius VRearPremium Grade
2012ToyotaPrius VRearPremium Grade
Directly replaces or cross-references 4 part numbers
Cross-reference numbers are provided for identification purposes only. Always confirm fitment before ordering.
MOOG Hub Assemblies — 512509Timken — HA5904645904644245047050
