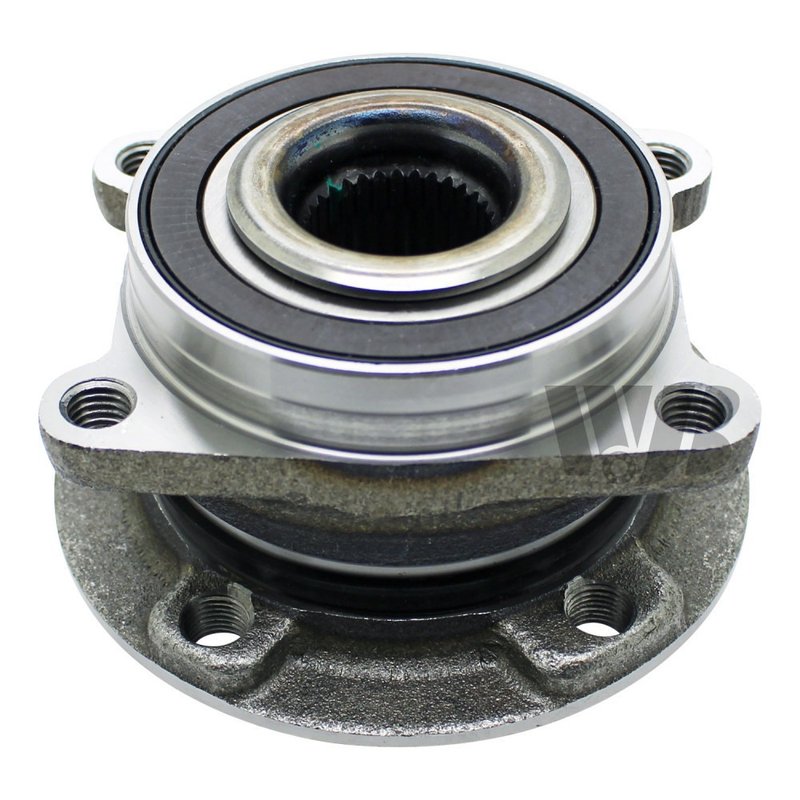

InMotion WA512513 Wheel Bearing and Hub Assembly - Front or Rear

Wheel Bearing and Hub Assembly for Jeep Cherokee

The InMotion WA512513 wheel bearing and hub assembly is built for direct replacement on select Jeep Cherokee and Chrysler 200 applications. Engineered from OE data and measured for fitment, this hub assembly supports proper wheel mounting, ABS function, and dependable driveline performance.

Key Features

• Direct replacement wheel bearing and hub assembly for select front and rear applications
• 32-spline design
• 5 wheel studs with a 4-bolt flange pattern
• ABS sensor included
• Wheel pilot diameter: 64.9 mm
• Brake pilot diameter: 69.9 mm
• Hub pilot diameter: 91.9 mm
• Flange diameter: 130.2 mm
• Bolt circle diameter: 110.1 mm
• Flange offset: 48.6 mm

Detailed Description

InMotion WA512513 is a precision-built wheel hub assembly manufactured with strict quality-control standards for consistent fit and performance. It is designed as a direct replacement for the original hub on 2014 Jeep Cherokee rear, 2015-2018 Jeep Cherokee front, 2019-2021 Jeep Cherokee rear, 2022 Jeep Cherokee front, 2023 Jeep Cherokee rear, and 2015-2017 Chrysler 200 rear Standard Grade applications. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel bearing noise or rough rotation
• ABS warning light concerns related to the hub sensor
• Wheel looseness or vibration at the hub
• Uneven wheel mounting caused by worn hub components
• Restoration of proper wheel support on Jeep Cherokee and Chrysler 200 models

Installation Notes and Tips

Verify position, spline count, bolt pattern, and sensor configuration before installation. Confirm the vehicle application against the listed fitment for 2014-2023 Jeep Cherokee and 2015-2017 Chrysler 200 Standard Grade models. Inspect mating surfaces, axle splines, and fasteners for wear or damage before installing the new hub assembly.

Quality Assurance

Manufactured using OE data and measurements, this InMotion hub assembly is built to match the original part’s fit and dimensional requirements. Strict quality-control criteria are used throughout production to support consistent installation and service life.
