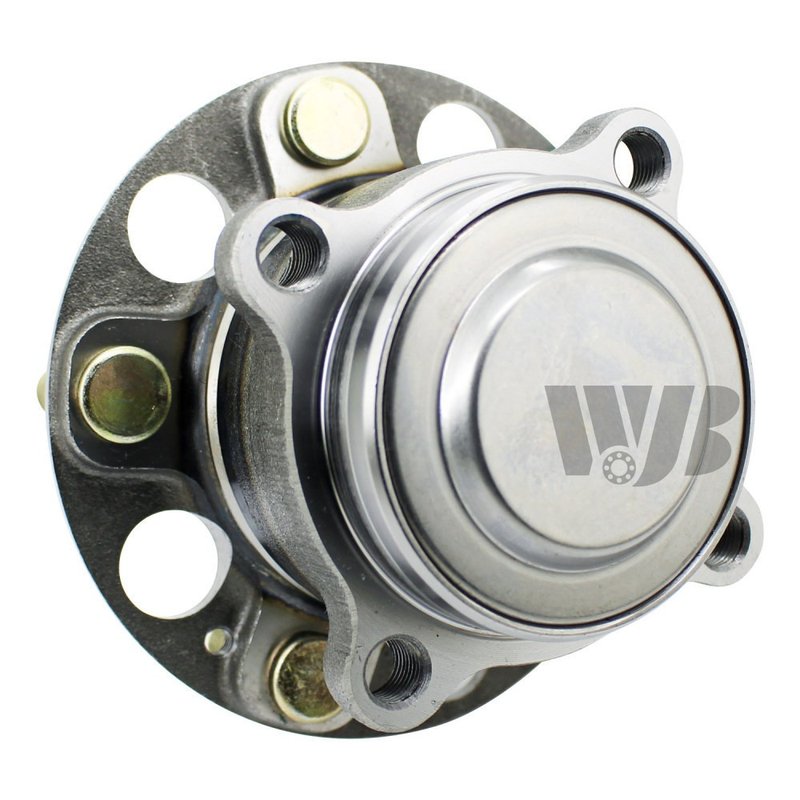

InMotion WA512516 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing and Hub Assembly for Honda Accord

The InMotion WA512516 is a rear wheel bearing and hub assembly built for 2014-2020 Honda Accord Standard Grade applications. It is engineered from OE data and measurements to match the original fit, with a 5-stud hub design, integrated ABS sensor, and precise flange dimensions for dependable rear-wheel service.

For buyers searching for a rear wheel bearing and hub assembly for Honda Accord, WA512516 provides a direct replacement format for the rear position. The hub is manufactured with controlled tolerances to support proper wheel mounting, brake alignment, and sensor function.

Key Features

• Fits 2014-2020 Honda Accord, rear, Standard Grade
• Part number: WA512516
• Wheel bearing and hub assembly for rear axle service
• Integrated anti-lock brake sensor included
• 5 wheel studs with 4 flange bolt holes
• 4.5 in. bolt circle diameter and 114.3 mm bolt circle diameter
• Square flange shape with 58.8 mm flange offset
• Wheel pilot diameter: 64.0 mm
• Brake pilot diameter: 64.0 mm
• Hub pilot diameter: 77.9 mm
• Flange diameter: 139.3 mm

Detailed Description

InMotion WA512516 is a rear wheel bearing and hub assembly designed for 2014-2020 Honda Accord models in Standard Grade trim. It is built using high-precision manufacturing methods and strict quality-control criteria, then matched to OE measurements for fitment, performance, and service life. The assembly includes the ABS sensor and uses a square flange design with the specified pilot and bolt-circle dimensions to support correct wheel and brake interface.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application. If you are replacing a worn rear hub on a Honda Accord, WA512516 offers the correct configuration for the rear position and the specified vehicle range.

Common Problems This Part Can Help Solve

• Rear wheel bearing noise or growling
• Excessive hub play or looseness
• ABS warning light caused by a failed hub sensor
• Uneven wheel mounting from a worn hub flange
• Brake vibration related to hub wear or runout

Installation Notes and Tips

Verify rear fitment by year, model, and Standard Grade application before installation. Confirm the 5-stud pattern, 114.3 mm / 4.5 in. bolt circle, and pilot dimensions against the original part. Inspect the mating surfaces, axle area, and brake components for wear before installing the new hub assembly. After installation, clear any stored ABS codes and confirm proper sensor operation.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled quality standards to support accurate fitment and consistent performance on the rear of the Honda Accord. Part number WA512516 is built as a direct replacement for the listed applications.
