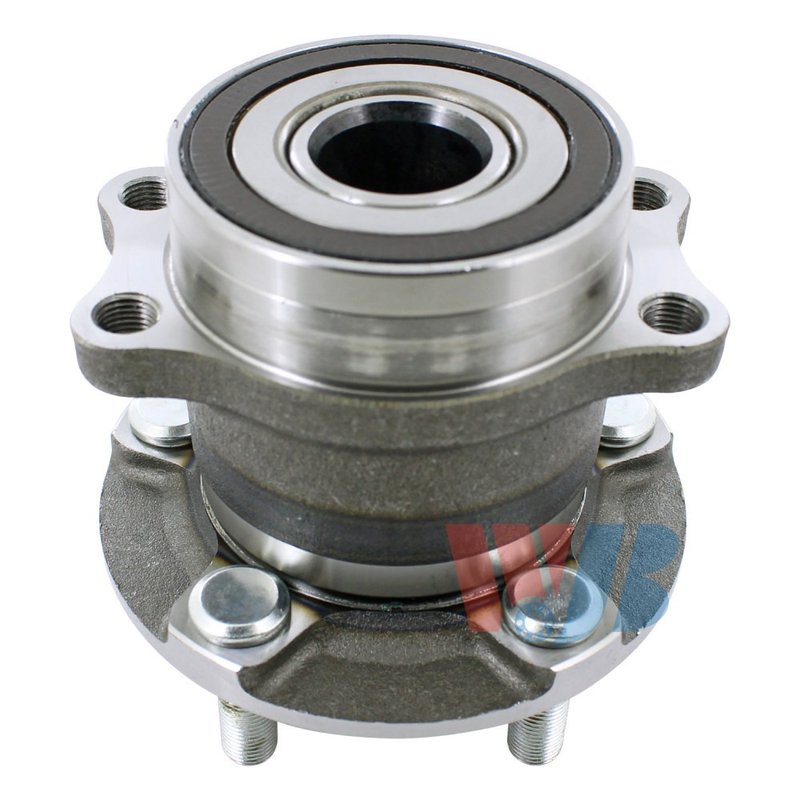

InMotion WA512518 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Subaru

The InMotion WA512518 rear wheel bearing and hub assembly is built for precise OE-style replacement on select Subaru models. It is engineered from OE data and measurements for fitment, performance, and service life, with an integrated ABS sensor included for direct rear axle service.

Key Features

• Rear wheel bearing and hub assembly for Subaru Crosstrek, Impreza, Forester, and XV Crosstrek applications
• 27-spline design with 5 wheel studs
• 4 flange bolt holes and rectangle flange shape
• ABS sensor included
• Wheel pilot diameter: 55.9 mm
• Brake pilot diameter: 57.9 mm
• Hub pilot diameter: 83.9 mm
• Flange diameter: 123.9 mm
• Bolt circle diameter: 3.928 in / 99.8 mm
• Flange offset: 66.5 mm

Detailed Description

InMotion WA512518 is a rear wheel bearing and hub assembly designed as a direct replacement for the original rear hub on select Subaru vehicles. It is built with high-precision manufacturing and strict quality-control standards, using OE data to match the required dimensions and mounting points. This helps support proper wheel mounting, brake alignment, and ABS system function on Subaru Crosstrek, Subaru Impreza, Subaru Forester, and Subaru XV Crosstrek rear applications.

This part number, WA512518, is specified with a 27-spline hub, 5 wheel studs, 4 flange bolt holes, and an integrated ABS sensor. The measured pilot and flange dimensions are important for accurate rear hub fitment, especially when replacing a worn or noisy assembly on a Subaru Crosstrek rear hub, Subaru Impreza rear wheel bearing assembly, or Subaru Forester rear hub assembly.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Vehicle Fitment

• Fits 2016-2023 Subaru Crosstrek, rear, Standard Grade
• Fits 2012-2021 Subaru Impreza, rear, Standard Grade
• Fits 2014-2018 Subaru Forester, rear, Standard Grade
• Fits 2013-2015 Subaru XV Crosstrek, rear, Standard Grade

Common Repair Uses

• Rear wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor or hub assembly issue
• Wheel looseness or play at the rear axle
• Uneven brake feel related to hub wear or mounting irregularity
• Vibration or humming from the rear of the vehicle

Installation Notes and Tips

Confirm rear fitment by year, model, and standard grade before ordering. Match the 27-spline configuration, 5-stud pattern, and ABS sensor requirement to the original part. Inspect the mating surfaces, axle condition, and brake components during installation, and torque all fasteners to Subaru service specifications.

Quality Assurance

InMotion manufactures this hub assembly with OE-based measurements and controlled production standards to support consistent fit and long-term service. The WA512518 is intended as a direct replacement rear hub assembly for the listed Subaru applications.
