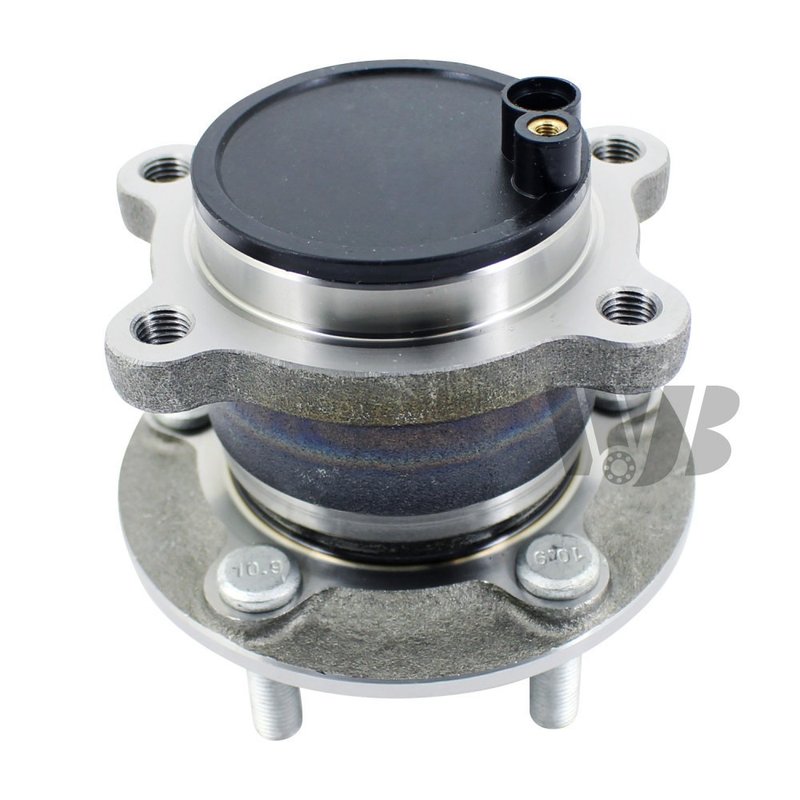

InMotion WA512525 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Transit Connect

InMotion WA512525 is a rear wheel bearing and hub assembly for the 2014-2018 Ford Transit Connect, Standard Grade. Built from OE data and measurements, this hub assembly is made for direct replacement use on the rear axle and includes the ABS sensor provision specified for the application.

Key Features

• Fits 2014-2018 Ford Transit Connect, rear
• Part number WA512525
• Wheel bearing and hub assembly for driveline and axle service
• 5 wheel studs with 4 flange bolt holes
• ABS sensor included
• OE-based dimensions for fitment, performance, and service life
• Flange shape: trapezoid
• Wheel pilot diameter: 63.3 mm
• Brake pilot diameter: 63.4 mm
• Hub pilot diameter: 81.3 mm
• Bolt circle diameter: 107.6 mm / 4.25 in

Product Details

This InMotion wheel bearing and hub assembly is engineered for the rear position on the Ford Transit Connect and manufactured with tight quality-control standards. The design follows OE specifications so the hub aligns with the original mounting points, wheel pilot, brake pilot, and bolt pattern requirements for the listed application. WA512525 is a direct replacement style part for rear hub service on 2014-2018 Ford Transit Connect models.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Symptoms

• Rear wheel bearing noise or growling
• Excessive wheel play or looseness
• ABS warning light related to rear hub sensor failure
• Uneven wheel rotation or vibration from hub wear
• Damaged wheel studs or hub mounting surfaces

Installation Notes

Confirm rear fitment on your 2014-2018 Ford Transit Connect before installation. Compare the flange bolt hole count, wheel stud quantity, bolt circle diameter, and pilot diameters to the original hub assembly. Inspect the knuckle, axle area, and ABS connector condition during service, and torque all fasteners to factory specifications.

Quality Assurance

InMotion manufactures this hub assembly using high-precision processes and strict quality-control criteria. Each unit is built from OE data and measurements to support correct fitment and consistent performance for rear hub replacement on the Ford Transit Connect.
