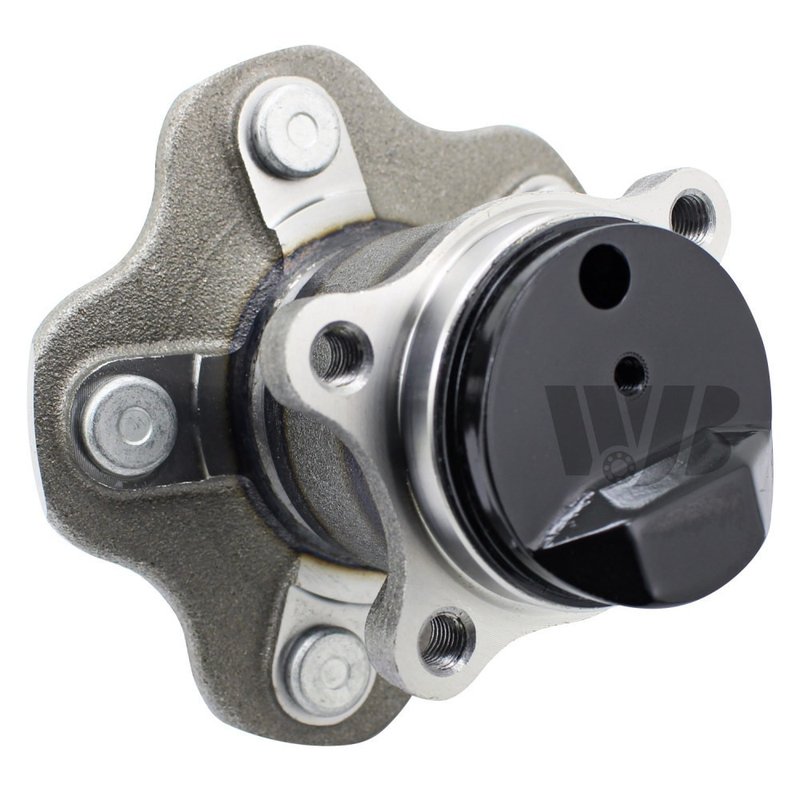

InMotion WA512530 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Nissan Sentra

InMotion WA512530 is a rear wheel bearing and hub assembly built for 2013-2019 Nissan Sentra Standard Grade applications. It is engineered from OE data and measurements to match the original fit, with the hub, bearing, and ABS sensor integration needed for a direct replacement service.

• Fits 2013-2019 Nissan Sentra, rear, Standard Grade
• Wheel stud quantity: 5
• Anti-lock brake sensor included: Yes
• Bolt circle diameter: 114.6
• Flange bolt hole quantity: 4
• Wheel pilot diameter: 65.9
• Brake pilot diameter: 67.9
• Hub pilot diameter: 68.9
• Flange offset: 69.0
• Flange diameter: 147.1

Built for OE-Style Fitment

This InMotion wheel bearing and hub assembly is manufactured with precision processes and strict quality-control standards to support consistent fitment and long service life. The WA512530 is made for rear installation on the Nissan Sentra and follows OE dimensions for the designated application, helping ensure proper wheel mounting, brake alignment, and sensor compatibility. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or rough rotation
• Excessive hub play or looseness at the wheel
• ABS warning light caused by a failed hub sensor assembly
• Uneven wheel mounting or vibration from hub wear
• Brake and wheel alignment issues related to hub damage

Installation Notes and Tips

Confirm rear fitment before ordering: this part is for 2013-2019 Nissan Sentra Standard Grade models only. Inspect the mounting surface, axle area, and brake components during replacement, and verify the ABS connector and wheel stud pattern match the original assembly. The WA512530 should be installed using the vehicle’s service procedures and torque specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support correct fitment and dependable operation. The WA512530 is intended as a direct replacement for the original rear hub assembly on the listed Nissan Sentra applications.
