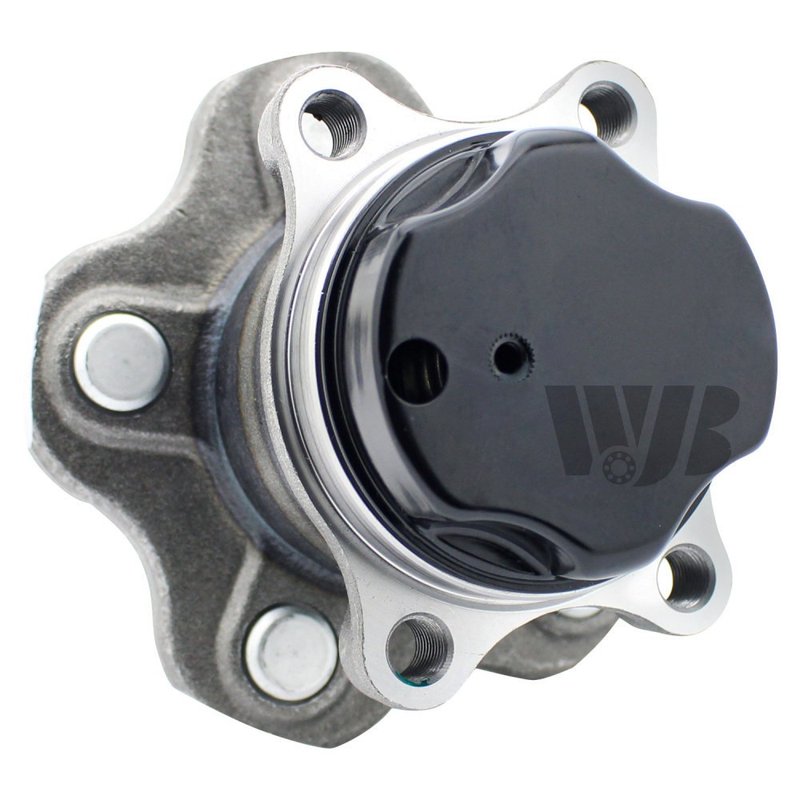

InMotion WA512533 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for NV200 and City Express

InMotion WA512533 is a rear wheel bearing and hub assembly built for direct replacement on select Nissan and Chevrolet vans. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life.

• Rear wheel bearing and hub assembly for 2013-2019 Nissan NV200 and 2015-2018 Chevrolet City Express
• Includes ABS sensor provision: Anti Lock Brake Sensor Included = Yes
• 5 wheel studs with 4 flange bolt holes
• Bolt circle diameter: 114.1 mm / 4.495 in
• Flange diameter: 148.0 mm, flange offset: 69.0 mm
• Wheel pilot diameter: 65.8 mm, brake pilot diameter: 67.9 mm, hub pilot diameter: 83.9 mm
• Trapezoid flange shape for the specified rear applications

Detailed Fitment and Design

This InMotion wheel bearing and hub assembly, part number WA512533, is manufactured with precision processes and quality-control standards to match the original rear hub dimensions for the listed vehicles. It is a direct replacement for the rear hub assembly used on 2013-2019 Nissan NV200 and 2015-2018 Chevrolet City Express models, with OE-based measurements supporting proper wheel mounting and sensor integration. WA512533 is built for the rear position and is specified for Standard Grade applications.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Part Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive wheel play or looseness at the rear axle
• ABS warning light concerns related to the rear hub sensor setup
• Uneven wheel mounting caused by hub wear or damage
• Vibration or rough rotation from a failing rear bearing unit

Installation Notes and Tips

Confirm rear position fitment before installation and verify the flange, bolt circle, and pilot dimensions against the removed part. Because this assembly includes an ABS sensor, inspect the connector and wiring path during service and clear any stored fault codes after installation. For best results, replace damaged fasteners, clean the mounting surface, and torque all hardware to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and strict quality-control criteria to support correct fitment and dependable operation on the listed Nissan NV200 and Chevrolet City Express applications. Part number WA512533 is built as a direct replacement for the original rear wheel hub assembly.
