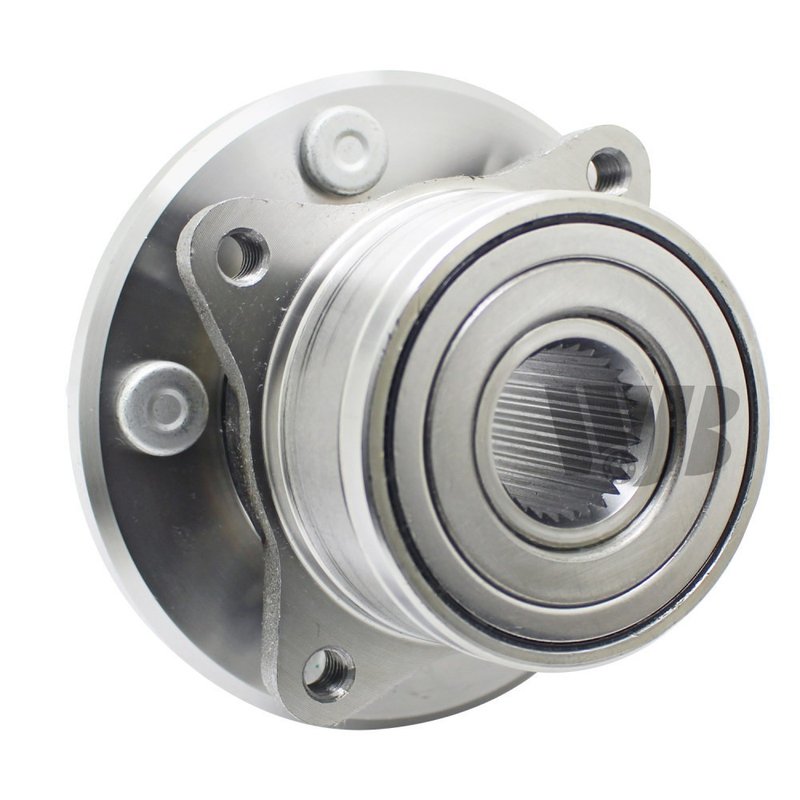

InMotion WA512540 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Jaguar XK and XKR

InMotion WA512540 is a rear wheel bearing and hub assembly built for 2007-2009 Jaguar XK and 2007-2009 Jaguar XKR Standard Grade applications. It is engineered from OE data and measurements to support correct fitment, stable wheel mounting, and long service life.

• Direct replacement rear hub assembly for Jaguar XK and Jaguar XKR
• 28-spline design
• 5 wheel studs with 4 flange bolt holes
• Bolt circle diameter: 108.0 mm
• Hub pilot diameter: 87.0 mm
• Wheel pilot diameter: 63.3 mm
• Brake pilot diameter: 64.4 mm
• Flange diameter: 138.9 mm
• Flange offset: 40.0 mm
• ABS sensor not included

OE-Style Fitment and Construction

WA512540 is manufactured with high-precision processes and strict quality-control standards to match the original rear hub assembly dimensions for the Jaguar XK and Jaguar XKR. The part number WA512540 is intended for standard grade rear applications and is built to align with OE specifications for wheel mounting, brake interface dimensions, and hub location.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What This Hub Assembly Helps Address

• Wheel bearing noise from a worn rear hub assembly
• Excessive wheel play or looseness at the rear axle
• Uneven wheel mounting caused by hub wear
• Brake rotor alignment issues related to hub dimension wear
• Service replacement needs on 2007-2009 Jaguar XK and XKR rear hubs

Installation Notes

Confirm rear fitment before ordering: Fits 2007-2009 Jaguar XK, rear, Standard Grade, and fits 2007-2009 Jaguar XKR, rear, Standard Grade. Verify spline count, bolt circle diameter, and pilot dimensions against the removed part before installation. Because the ABS sensor is not included, reuse or source the sensor separately if your vehicle configuration requires one. Part number WA512540 should be matched to the vehicle’s rear hub specification and installed using proper driveline and axle service procedures.

Quality Assurance

InMotion manufactures this wheel bearing and hub assembly using OE data, precise measurements, and controlled production standards to support consistent fitment and durability. WA512540 is built as a direct replacement for the original rear hub assembly on the specified Jaguar XK and Jaguar XKR applications.
