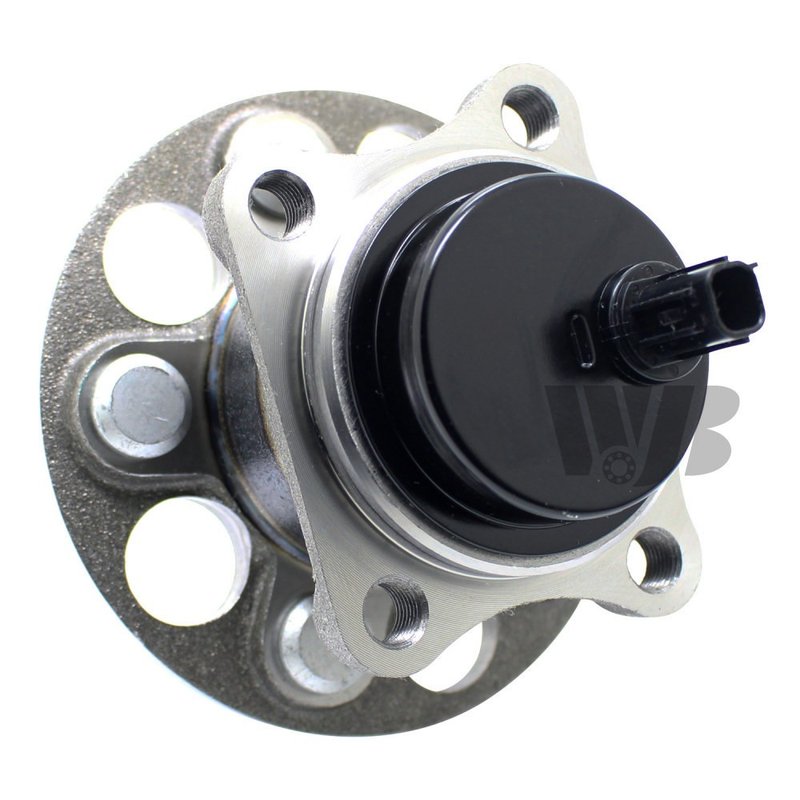

InMotion WA512547 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Toyota and Lexus

InMotion WA512547 is a rear wheel bearing and hub assembly built for direct replacement on select Toyota Corolla, Prius, Prius Prime, and Lexus CT200h applications. It is engineered from OE data and measurements to match the original fit, mounting points, and operating dimensions for the listed vehicles.

With an integrated ABS sensor and precision-machined hub dimensions, this rear hub assembly supports consistent wheel mounting and sensor function on the specified applications. The WA512547 is designed for drivers servicing a Toyota Corolla rear hub assembly or replacing a worn Lexus CT200h rear wheel bearing hub assembly.

Key Features

• Part number: WA512547
• Rear wheel bearing and hub assembly
• Integrated anti-lock brake sensor included
• 5 wheel studs and 4 flange bolt holes
• Bolt circle diameter: 100.0 mm
• Flange diameter: 135.0 mm
• Flange offset: 60.0 mm
• Wheel pilot diameter: 54.0 mm
• Brake pilot diameter: 55.0 mm
• Hub pilot diameter: 75.9 mm

Detailed Description

InMotion WA512547 is manufactured using high-precision processes and strict quality-control standards to deliver a direct-fit rear hub assembly for the listed Toyota and Lexus vehicles. The assembly is built around OE reference data to help maintain proper wheel location, brake interface alignment, and ABS sensor operation. For shoppers searching for a rear wheel bearing hub assembly for 2019-2022 Toyota Corolla, 2016-2022 Toyota Prius, 2017-2022 Toyota Prius Prime, or 2011-2017 Lexus CT200h, this part number provides a vehicle-specific replacement solution.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

What It Helps Address

• Wheel bearing noise from a worn rear hub assembly
• ABS warning light concerns related to hub-mounted sensor issues
• Excessive wheel play or looseness at the rear hub
• Improper wheel mounting caused by damaged hub or stud surfaces
• Fitment issues when replacing the original rear bearing and hub unit

Installation Notes and Fitment

Compatible With:

• Fits 2023 Toyota Corolla, rear, thru 1/23
• Fits 2019-2022 Toyota Corolla, rear, standard grade
• Fits 2016-2022 Toyota Prius, rear, standard grade
• Fits 2017-2022 Toyota Prius Prime, rear, standard grade
• Fits 2011-2017 Lexus CT200h, rear, standard grade

Verify flange bolt hole quantity, bolt circle diameter, and hub pilot dimensions before installation. Confirm ABS sensor connector routing and rear axle/hub condition during service. Professional installation is recommended to ensure proper torque, sensor seating, and brake system alignment.

Quality Assurance

Each InMotion hub assembly is engineered from OE measurements and manufactured under strict quality-control criteria to support accurate fitment, performance, and service life on the listed applications.
