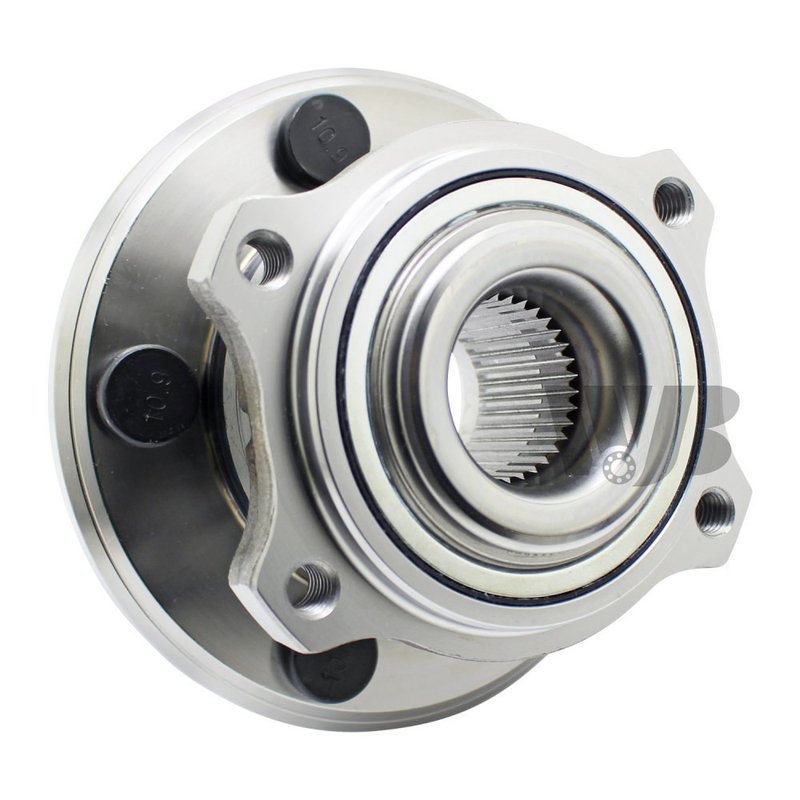

InMotion WA512555 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Chrysler, Dodge

InMotion WA512555 is a rear wheel bearing and hub assembly built for direct replacement on select Chrysler and Dodge applications. It is engineered from OE data and measurements for accurate fitment, stable wheel support, and long service life on the rear of the vehicle.

Compatible with 2015-2023 Chrysler 300, rear standard grade, 2015-2023 Dodge Challenger, rear standard grade, and 2015-2023 Dodge Charger, rear standard grade. The WA512555 hub assembly is designed around the original mounting and bearing dimensions for a precise service replacement.

Key Features

• Rear wheel bearing and hub assembly for select Chrysler and Dodge vehicles
• 35-spline design
• 5 wheel studs and 4 flange bolt holes
• Wheel pilot diameter: 71.3 mm
• Brake pilot diameter: 72.4 mm
• Hub pilot diameter: 90.2 mm
• Flange diameter: 149.7 mm
• Bolt circle diameter: 115.1 mm
• Flange offset: 59.9 mm
• ABS sensor not included

Detailed Description

InMotion WA512555 is manufactured with high-precision processes and strict quality-control standards to match the original rear hub assembly dimensions. Built using OE data and measurements, this part is intended as a direct replacement for the factory unit on Chrysler 300, Dodge Challenger, and Dodge Charger rear applications from 2015 through 2023. The hub’s measured pilot diameters, bolt pattern, spline count, and flange dimensions support proper wheel mounting and bearing operation.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Rear wheel bearing noise or rough rotation
• Excessive wheel play at the hub
• Damaged or worn hub mounting surfaces
• Incorrect wheel fitment caused by hub wear
• Service replacement after bearing or hub failure

Installation Notes and Tips

Verify rear application details before installation, including spline count, bolt circle diameter, and pilot dimensions. Because the ABS sensor is not included, confirm whether the vehicle requires a separate sensor transfer or replacement during service. Clean the mounting surface thoroughly and torque all fasteners to factory specifications during installation.

Quality Assurance

InMotion manufactures this hub assembly to OE-based measurements under strict quality-control criteria for consistent fit and performance. WA512555 is built as a direct replacement part for the listed rear Chrysler and Dodge applications.
