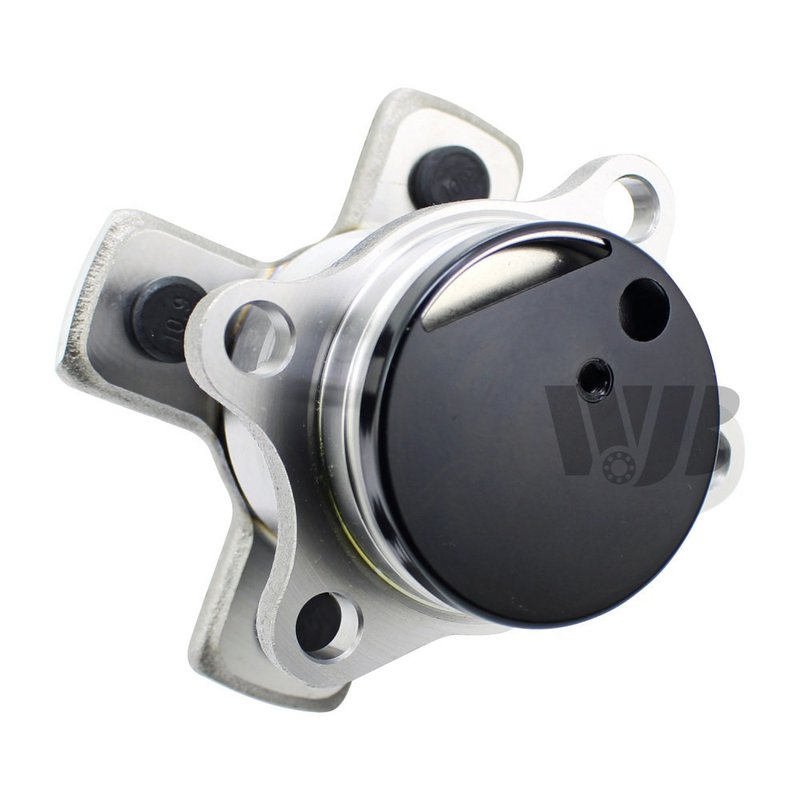

InMotion WA512559 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Honda Fit

InMotion WA512559 is a rear wheel bearing and hub assembly built for 2015-2020 Honda Fit applications. It is engineered from OE data and measurements for direct replacement fitment, with the hub, bearing, and ABS sensor integration matched to the original application.

• Fits 2015-2020 Honda Fit, rear
• Part number: WA512559
• Anti-lock brake sensor included
• 4 wheel studs and 4 flange bolt holes
• Bolt circle diameter: 100.0 mm / 3.936 in
• Wheel pilot diameter: 56.0 mm
• Brake pilot diameter: 60.9 mm
• Hub pilot diameter: 72.9 mm
• Flange diameter: 138.7 mm
• Flange offset: 58.8 mm
• Trapezoid flange shape

Built for OE-Style Fitment

This InMotion wheel bearing and hub assembly is manufactured with high-precision processes and strict quality-control standards. The design follows OE measurements to help ensure proper fit, stable wheel mounting, and consistent bearing performance on the rear of the Honda Fit. WA512559 is a direct replacement style part for drivers servicing a worn rear hub on 2015, 2016, 2017, 2018, 2019, or 2020 Honda Fit models.

Common Problems This Part Addresses

• Rear wheel bearing noise or growling
• Excessive hub play or looseness
• ABS warning light caused by a failed sensor-equipped hub
• Uneven wheel mounting from worn hub components
• Vibration or roughness from a deteriorated rear hub assembly

Installation Notes

Confirm rear fitment by matching the vehicle year, make, and model before installation. Verify bolt circle, pilot diameters, flange offset, and ABS sensor connection against the original part. Clean the mounting surface and inspect related brake and suspension components during service. Part number WA512559 is listed for the rear position on the Honda Fit only.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support proper application matching and long-term service life. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.
