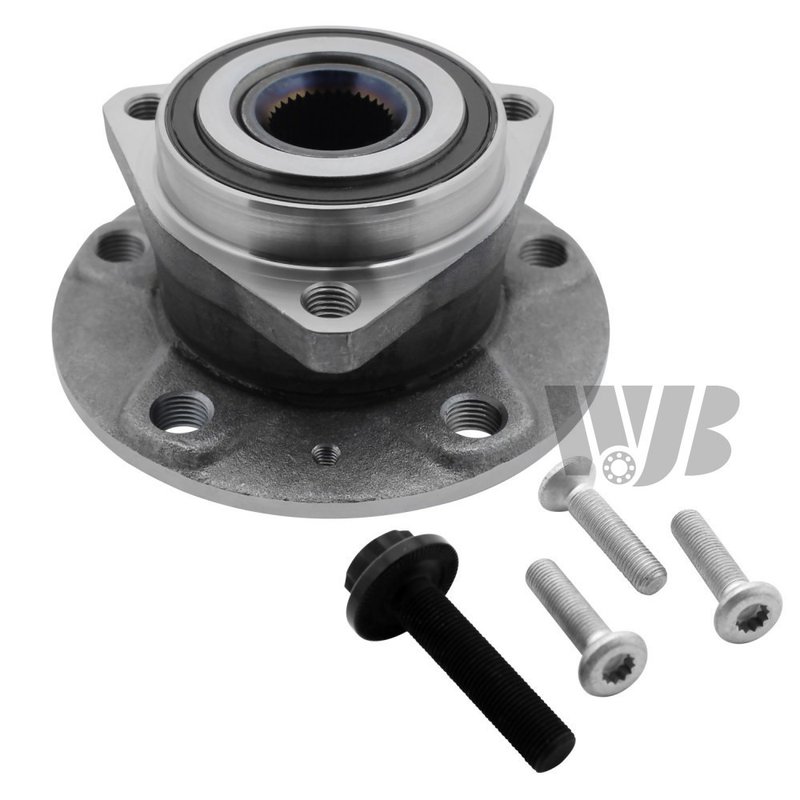

InMotion WA512566 Wheel Bearing and Hub Assembly - Front or Rear

OE-Style Wheel Hub Assembly for Audi and Volkswagen

The InMotion WA512566 wheel bearing and hub assembly is built for direct replacement service on select Audi and Volkswagen applications. Engineered from OE data and measurements, it is designed to match the original fit, mounting points, and operating dimensions for front or rear service depending on vehicle application.

With a 5-stud wheel pattern, 36 splines, and an integrated ABS sensor, this hub assembly supports precise wheel mounting and consistent sensor input. The WA512566 is a practical choice for Audi A3, A3 Quattro, S3, RS3, and Volkswagen Golf R, Golf Alltrack, and Golf SportWagen service work.

Key Features

• Wheel bearing and hub assembly for direct replacement use
• OE-data-based design for fitment, performance, and longevity
• Integrated anti-lock brake sensor included
• 36 spline count with 5 wheel studs
• 3 flange bolt holes for secure mounting
• Wheel pilot diameter: 57.0 mm
• Brake pilot diameter: 64.9 mm
• Hub pilot diameter: 79.9 mm
• Flange diameter: 136.4 mm
• Bolt circle diameter: 112.3 mm
• Flange offset: 47.9 mm

Detailed Description

InMotion WA512566 is manufactured with strict quality-control criteria and high-precision production methods to deliver a hub assembly that matches the original application requirements. It is engineered as an OE-style replacement for select Audi A3, Audi A3 Quattro, Audi S3, Audi RS3, and Volkswagen Golf platform vehicles, including front and rear positions depending on the exact model and year. This part number, WA512566, is built around the dimensional details needed for proper wheel seating, brake interface alignment, and ABS sensor integration.

This part cross-references no listed aftermarket part numbers in the provided data.

Fitment

• Fits 2020 Audi A3, front, with 80 mm outside diameter bearing(s)
• Fits 2015-2017 Audi A3, front, with 80 mm outside diameter bearing(s)
• Fits 2019-2020 Audi A3 Quattro, rear, standard grade
• Fits 2017 Audi A3 Quattro, rear, standard grade
• Fits 2017-2020 Audi RS3, rear, standard grade
• Fits 2018-2020 Audi S3, rear, standard grade
• Fits 2015 Audi S3, rear, standard grade
• Fits 2018-2019 Audi A3, front, standard grade
• Fits 2017-2019 Volkswagen Golf Alltrack, rear, standard grade
• Fits 2018-2019 Volkswagen Golf R, rear, standard grade
• Fits 2015-2016 Volkswagen Golf R, rear, standard grade
• Fits 2018-2019 Volkswagen Golf SportWagen, rear, standard grade
• Fits 2018 Audi A3 Quattro, front, standard grade
• Fits 2018 Audi A3 Sportback e-tron, front, standard grade
• Fits 2016-2017 Audi A3 Sportback e-tron, front, with 80 mm outside diameter bearing(s)
• Fits 2016-2017 Audi S3, front, with 80 mm outside diameter bearing(s)
• Fits 2015-2016 Audi A3 Quattro, front, with 80 mm outside diameter bearing(s)

Installation Notes and Tips

Confirm the vehicle position, bearing outside diameter, and ABS sensor requirements before installation. Match the hub dimensions, bolt circle diameter, and pilot diameters to the original part to ensure proper wheel and brake alignment. For Audi A3 front hub replacement, Audi S3 front wheel bearing service, or Volkswagen Golf R rear hub assembly replacement, verify the exact year and trim against the fitment list before ordering.

Quality Assurance

InMotion manufactures this hub assembly using OE data, precise measurements, and controlled production standards to support consistent fit and function. The WA512566 is built as a direct replacement part for the listed Audi and Volkswagen applications.
