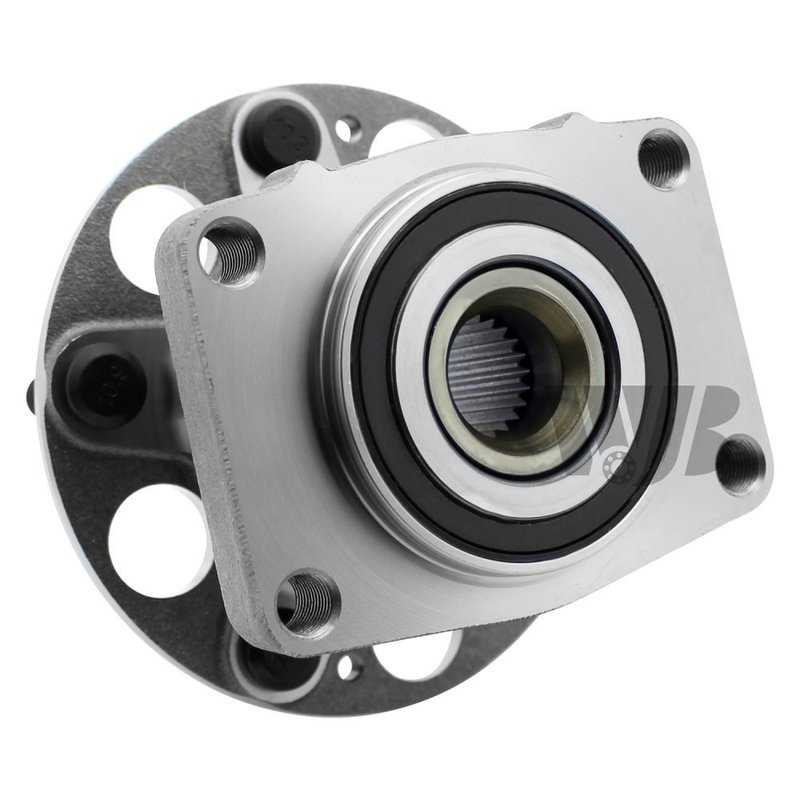

InMotion WA512567 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Honda HR-V

The InMotion WA512567 is a rear wheel bearing and hub assembly built for 2016-2022 Honda HR-V models in Standard Grade applications. Engineered from OE data and measurements, it is made for direct replacement use where precise fitment, stable wheel support, and consistent hub performance matter.

With a 5-stud wheel pattern, 23 splines, and an integrated ABS sensor, this rear hub assembly is specified to match the original application closely. The WA512567 is a practical choice for drivers searching for a rear wheel bearing hub assembly for Honda HR-V, or a direct replacement hub assembly for 2016-2022 Honda HR-V rear service.

Key Features

• Fits 2016-2022 Honda HR-V, rear
• Part number: WA512567
• Wheel bearing and hub assembly for Standard Grade applications
• Integrated anti-lock brake sensor included
• 23 spline quantity for the designated driveline setup
• 5 wheel studs with 4 flange bolt holes
• Wheel pilot diameter: 64.0 mm
• Brake pilot diameter: 64.0 mm
• Hub pilot diameter: 75.9 mm
• Bolt circle diameter: 114.6 mm
• Flange diameter: 139.2 mm
• Flange offset: 70.5 mm

Detailed Description

InMotion WA512567 is manufactured as a precision rear hub assembly using modern production methods and strict quality-control standards. It is engineered to follow OE measurements for the 2016-2022 Honda HR-V rear position, helping ensure the hub, bearing, and ABS sensor interface align with the original design. For buyers comparing a Honda HR-V rear wheel hub assembly or searching by part number WA512567, this unit provides the core dimensions and sensor integration needed for a direct replacement service.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Repair Uses

• Rear wheel bearing noise on a Honda HR-V
• Wheel play or looseness at the rear hub
• ABS warning light related to the rear wheel speed sensor
• Uneven hub rotation or rough bearing feel
• Replacement after hub or bearing wear on 2016-2022 Honda HR-V models

Installation Notes and Tips

Confirm rear-position fitment before ordering and verify the 23-spline, 5-stud, and 114.6 mm bolt circle specifications against the original part. Inspect the mating surfaces, axle interface, and brake components during installation, and follow the vehicle service manual for torque values and sensor handling. Because the ABS sensor is included, take care not to damage the sensor lead or connector during assembly.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support accurate fitment and long service life in the specified Honda HR-V rear application. Part number WA512567 is built for direct replacement use in the listed vehicles.
