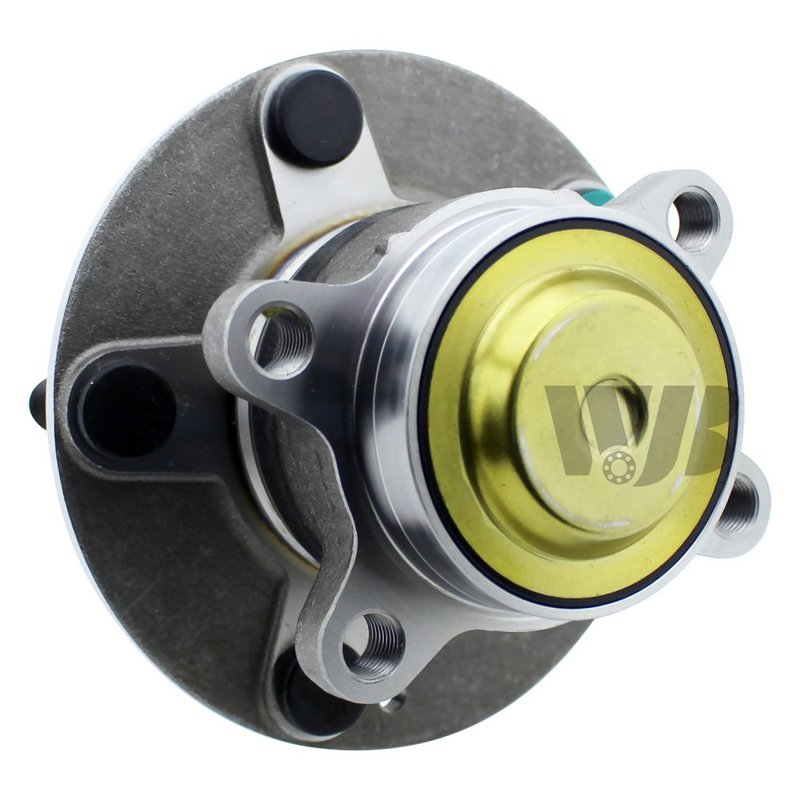

InMotion WA512570 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Bearing Hub Assembly for Honda Civic and Insight

InMotion WA512570 is a rear wheel bearing and hub assembly built for direct replacement on select Honda applications. It is engineered from OE data and measurements to support proper fitment, stable wheel mounting, and long service life on the rear axle.

Fits 2016-2021 Honda Civic, rear. Fits 2019-2022 Honda Insight, rear. This part cross-references common OE-style replacement needs for the same application.

Key Features

• Rear wheel bearing and hub assembly for select Honda Civic and Honda Insight models
• Direct replacement design based on OE data and dimensional measurements
• Precision-manufactured hub assembly with controlled quality standards
• 5 wheel studs for secure wheel attachment
• 4 flange bolt holes for mounting
• Integrated anti-lock brake sensor included
• Wheel pilot diameter: 64.0 mm
• Brake pilot diameter: 64.0 mm
• Hub pilot diameter: 69.9 mm
• Bolt circle diameter: 114.4 mm
• Flange diameter: 139.3 mm
• Flange offset: 55.1 mm

Product Details

WA512570 is a rear hub assembly designed for 2016-2021 Honda Civic and 2019-2022 Honda Insight standard grade applications. The assembly combines the hub and bearing into one service part and includes the ABS sensor, helping maintain proper wheel-speed signal function when replacing a worn rear hub. InMotion manufactures this part with high-precision processes and strict quality-control criteria to match the original application dimensions and support consistent performance. If you are searching for a rear wheel bearing hub assembly for Honda Civic rear or a Honda Insight rear hub assembly, WA512570 is built for those exact vehicle fitments.

Common Problems This Part Can Address

• Rear wheel bearing noise, growling, or rumbling
• Excessive wheel play or looseness at the hub
• ABS warning light caused by a failing wheel-speed sensor or hub signal issue
• Uneven rear wheel rotation from a worn bearing assembly
• Hub mounting wear that affects wheel stability

Installation Notes and Tips

Confirm rear fitment by year, model, and standard grade application before installation. Inspect the knuckle, axle area, and mounting surfaces for wear or corrosion before pressing in or bolting the new assembly. Verify torque specifications and ABS connector routing during installation, and clear any stored fault codes after replacement if needed.

Quality Assurance

InMotion manufactures this hub assembly using OE-based measurements and controlled production standards to support proper fit and dependable operation. The part is built as a direct replacement for the original rear hub assembly on the listed Honda Civic and Honda Insight applications.
