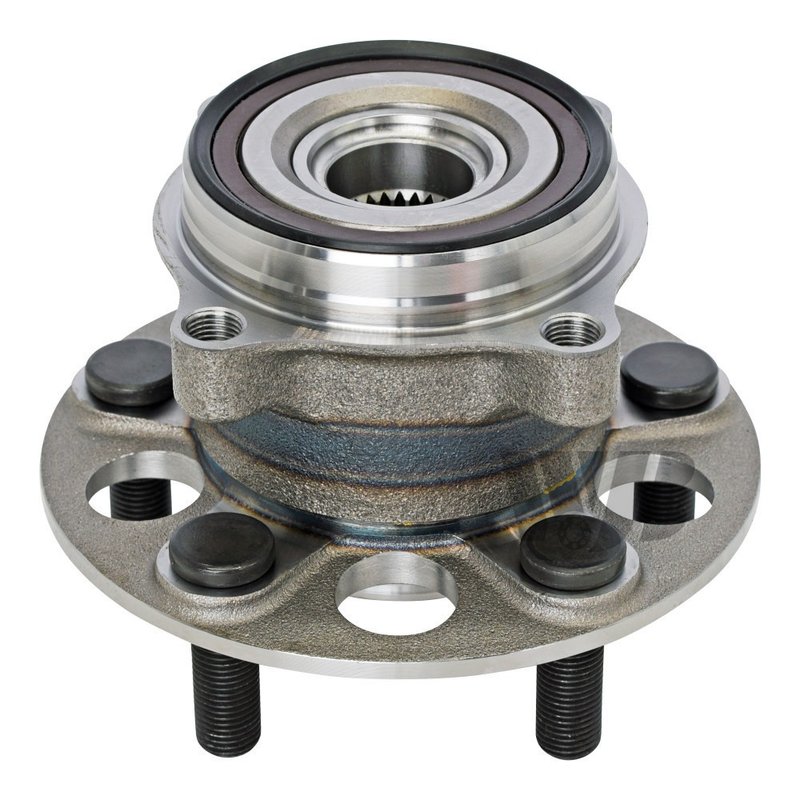

InMotion WA512584 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Honda Ridgeline

InMotion WA512584 is a rear wheel bearing and hub assembly built for 2017-2023 Honda Ridgeline Standard Grade applications. It is engineered from OE data and measurements to match the original fit, with the precision needed for stable wheel support, proper sensor function, and long service life.

This rear hub assembly includes an ABS sensor and is built with a 5-stud wheel pattern, 4 flange bolt holes, and application-specific pilot and flange dimensions for accurate installation on the Honda Ridgeline rear axle. Part number WA512584 is a direct replacement option for service work that calls for a complete hub unit.

Key Features

• Fits 2017-2023 Honda Ridgeline, rear
• Wheel bearing and hub assembly for Standard Grade applications
• ABS sensor included for integrated wheel speed signal support
• 28-spline design
• 5 wheel studs and 4 flange bolt holes
• OE-based dimensions for fitment and alignment
• Hub pilot diameter: 89.1 mm
• Wheel pilot diameter: 64.0 mm
• Brake pilot diameter: 70.1 mm
• Bolt circle diameter: 120.1 mm
• Flange diameter: 152.2 mm
• Flange offset: 62.2 mm

Detailed Description

InMotion WA512584 is manufactured using high-precision processes and strict quality-control standards to deliver a rear hub assembly that matches the original application requirements. For 2017-2023 Honda Ridgeline models, this part is built around OE data and measurements so the hub, bearing, stud pattern, and sensor interface align with the vehicle’s rear suspension and braking system. The result is a service replacement designed for correct fitment on the Honda Ridgeline rear position without modification.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Wheel bearing noise from the rear hub area
• ABS warning light caused by a failed wheel speed sensor or hub assembly
• Wheel play or looseness at the rear axle
• Uneven hub wear from a damaged bearing unit
• Fitment issues when replacing a worn Honda Ridgeline rear hub assembly

Installation Notes and Tips

Confirm rear-position fitment before ordering: Fits 2017-2023 Honda Ridgeline, rear. Verify spline count, bolt circle diameter, and pilot dimensions against the removed part to ensure a proper match. Clean the mounting surface thoroughly before installation and inspect related components such as the axle, brake hardware, and wiring connector for wear or damage. After installation, clear any stored ABS codes and road test the vehicle to confirm normal operation.

Quality Assurance

InMotion manufactures this hub assembly with OE-based engineering data, precise measurements, and controlled production standards to support consistent fitment and performance on the specified Honda Ridgeline applications. Part number WA512584 is built as a direct replacement for the original rear hub assembly.
