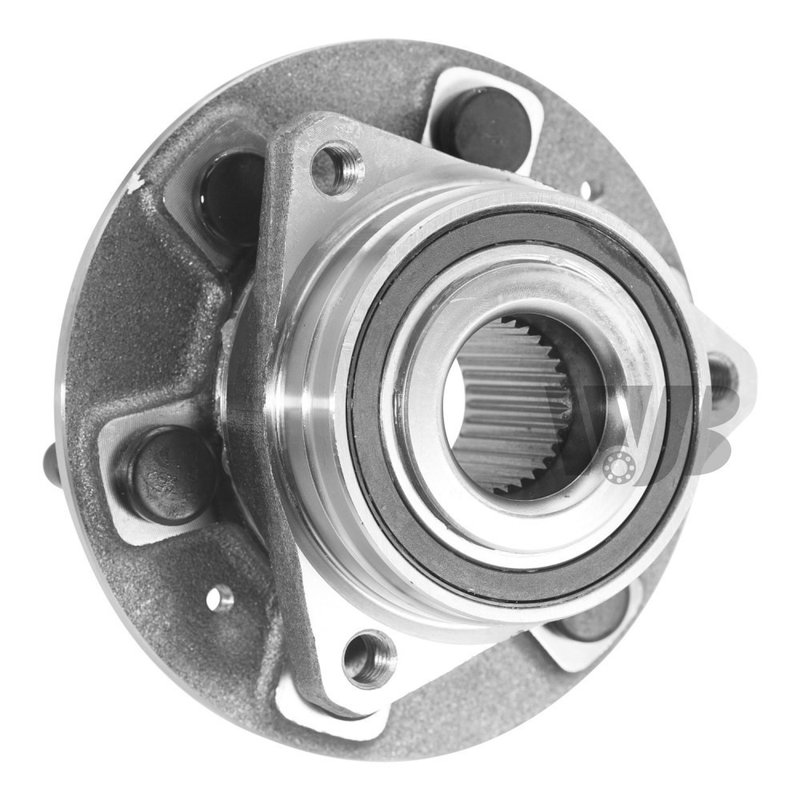

InMotion WA512593 Wheel Bearing and Hub Assembly - Front or Rear

Wheel Bearing and Hub Assembly for GM SUVs

The InMotion WA512593 wheel bearing and hub assembly is a direct replacement hub built for precise fitment and dependable wheel support. Engineered from OE data and measurements, it is made for front and rear applications on select Buick, Cadillac, Chevrolet, and GMC models, including Buick Enclave, Cadillac XT5 and XT6, Chevrolet Traverse, and GMC Acadia.

With a 6-stud wheel pattern, integrated ABS sensor, and application-specific dimensions, this hub assembly is designed to match the original mounting and sensor requirements for the listed vehicles. The WA512593 is a practical choice when replacing a worn wheel hub on a GM crossover or SUV.

Key Features

• Wheel bearing and hub assembly for select front and rear applications
• 33-spline design
• 6 wheel studs with 3 flange bolt holes
• Integrated anti-lock brake sensor included
• Flange diameter: 157.0 mm
• Bolt circle diameter: 120.05 mm
• Hub pilot diameter: 91.23 mm
• Wheel pilot diameter: 66.83 mm
• Brake pilot diameter: 67.35 mm
• Flange offset: 42.08 mm

Detailed Description

InMotion part number WA512593 is manufactured as a precision wheel bearing and hub assembly using strict quality-control standards. It is engineered for direct replacement use on the specified Buick, Cadillac, Chevrolet, and GMC platforms, with dimensions and OE-based measurements that support proper fitment, wheel mounting, and bearing performance. This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Compatible vehicle coverage includes Fits 2018-2019 Buick Enclave, front; Fits 2020-2021 Buick Enclave, rear; Fits 2022 Buick Enclave, front; Fits 2017-2019 GMC Acadia, front; Fits 2020-2021 GMC Acadia, rear; Fits 2022 GMC Acadia, front; Fits 2017-2018 Cadillac XT5, front; Fits 2019-2022 Cadillac XT5, rear; Fits 2020 Cadillac XT6, rear; Fits 2021-2022 Cadillac XT6, front; Fits 2018 Chevrolet Traverse, rear; Fits 2019 Chevrolet Traverse, front; Fits 2020 Chevrolet Traverse, rear; Fits 2021-2022 Chevrolet Traverse, front.

What This Part Helps Address

• Wheel bearing noise or rough rotation
• ABS warning light caused by a failed hub sensor
• Wheel looseness or hub play
• Uneven wheel mounting due to worn hub surfaces
• Vibration or instability from a damaged hub assembly

Installation Notes and Tips

Confirm the vehicle position before ordering, since WA512593 is used on both front and rear locations depending on model year. Verify spline count, bolt circle diameter, flange offset, and sensor configuration against the original part before installation. Clean the mounting surface, inspect related suspension and brake components, and torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures this hub assembly with OE-based engineering data and controlled production standards to support consistent fit and service life. Part number WA512593 is built for the listed applications and is intended as a direct replacement for the original wheel hub assembly.
