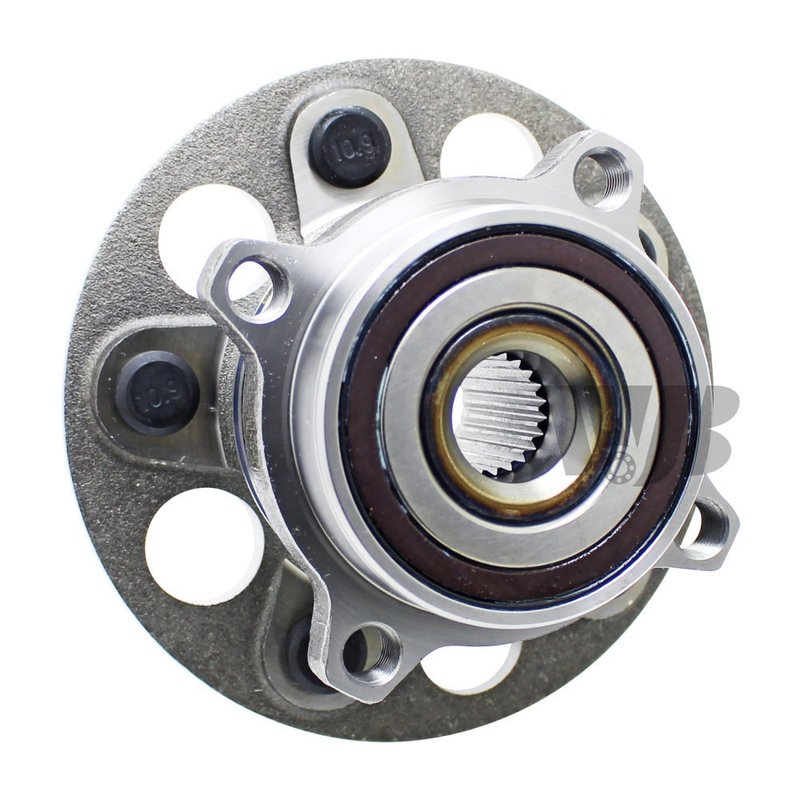

InMotion WA512632 Wheel Bearing and Hub Assembly - Rear

Rear Wheel Hub Assembly for Honda CR-V

InMotion WA512632 is a rear wheel bearing and hub assembly engineered for 2017-2022 Honda CR-V models with standard grade fitment. Built from OE data and measurements, this hub assembly is designed for direct replacement use with the correct hub, flange, and sensor specifications.

• Fits 2017-2022 Honda CR-V, rear, standard grade
• 23-spline hub design
• 5 wheel studs and 4 flange bolt holes
• ABS sensor included
• Wheel pilot diameter: 64.01 mm
• Brake pilot diameter: 64.01 mm
• Hub pilot diameter: 80.12 mm
• Bolt circle diameter: 114.3 mm
• Flange diameter: 151.75 mm
• Flange offset: 55.81 mm

OE-Style Fitment and Construction

This InMotion wheel bearing and hub assembly is manufactured with precision controls to match the designated application. The WA512632 part number is built for rear installation on the Honda CR-V and follows OE dimensions for proper alignment with the wheel, brake components, and ABS system. If you are replacing a worn rear hub on a 2017-2022 Honda CR-V, WA512632 provides the key dimensional and sensor features needed for a direct replacement.

This part cross-references Monroe Shocks & Struts (e.g., 172286, 182286) for the same application.

Common Problems This Part Can Address

• Rear wheel bearing noise or growling from the hub area
• Excessive wheel play or looseness at the rear axle
• ABS warning light caused by a failed hub sensor
• Uneven rear wheel rotation from hub wear
• Brake or wheel fitment issues related to incorrect hub dimensions

Installation Notes

Confirm rear position and standard grade application before installation. Verify spline count, bolt circle diameter, and pilot diameters against the original part to ensure proper fit on the Honda CR-V. Because the ABS sensor is included, inspect the connector routing and sensor seating during installation. Always torque fasteners to the vehicle manufacturer’s specifications.

Quality Assurance

InMotion manufactures these hub assemblies using strict quality-control criteria and OE-based measurements to support fitment, performance, and service life. Part number WA512632 is intended as a direct replacement for the original rear hub assembly on listed Honda CR-V applications.
